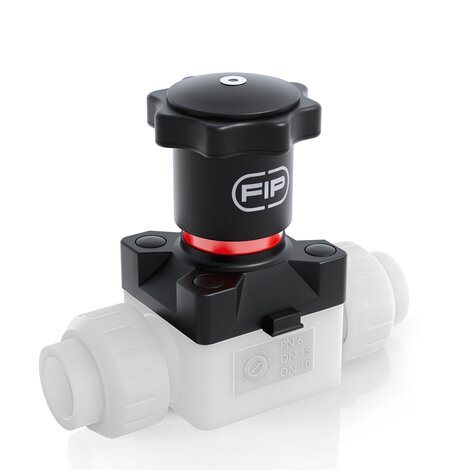

CMUIF - Compact diaphragm valve

Caracteristici Tehnice

Connection system for solvent weld and threaded joints

Extremely compact construction

Internal operating components in metal totally isolated from the conveyed fluid

Valve stem in STAINLESS steel

Compressor with floating diaphragm support

Easy to replace diaphragm seal

Corrosion-proof internal components

CDSA (Circular Diaphragm Sealing Angle) system offering the following advantages:uniform distribution of shutter pressure on the diaphragm seal

reduction in the tightening torque of the crews fixing the actuator to the valve body

reduced mechanical stress on all valve components (actuator, body and diaphragm)

easy to clean valve interior

low risk of the accumulation of eposits, contamination or damage to the diaphragm due to crystallisation

operating torque reduction

Referință	DN	d	PN	L	Greutate	Material
CMUIF020E	15	20	-	-	-	-
CMUIF020F	15	20	-	-	-	-
CMUIF020P	15	20	-	-	-	-
