FIPManual valves
Material corp
PP-H
Material etanșare
EPDM

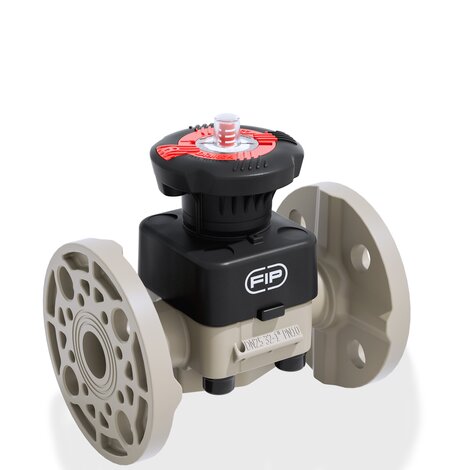

DKOAM - DIALOCK® 2-way diaphragm valve
Caracteristici Tehnice
Connection system for solvent weld, threaded and flanged joints
Optimised fluid dynamic design :maximum output flow rate thanks to the optimised efficiency of the fluid dynamics that characterise the new internal geometry of the body
Internal components in metal, totally isolated from the fluid and external environment
Modularity of the range:only 2 handwheel and 4 diaphragm and bonnet sizes for 7 different valve sizes
Non-rising handwheel that stays at the same height during rotation, equipped with a graduated optical indicator protected by a transparent PVC cap with seal O-Ring
Bonnet fastening screws in stainless steel protected against the external environment by PE plugs. Absence of metal parts exposed to the external environment to prevent any risk of corrosion
CDSA (Circular Diaphragm Sealing Angle) system that, thanks to the uniform distribution of shutter pressure on the diaphragm seal, offers the following advantages:reduction in the tightening torque of the screws fixing the actuator to the valve body
reduced mechanical stress on all valve components (actuator, body and diaphragm)
easy to clean valve interior
low risk of the accumulation of deposits, contamination or damage to the diaphragm due to crystallisation
operating torque reduction
Documentație
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (21 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| DKOAM012E | 15 | 1/2" | - | - | - | - |
| DKOAM034E | 20 | 3/4" | - | - | - | - |
| DKOAM100E | 25 | 1" | - | - | - | - |
| DKOAM114E | 32 | 1" 1/4 | - | - | - | - |
| DKOAM112E | 40 | 1" 1/2 | - | - | - | - |
| DKOAM200E | 50 | 2" | - | - | - | - |
| DKOAM212E | 65 | 2" 1/2 | - | - | - | - |
| DKOAM012F | 15 | 1/2" | - | - | - | - |
| DKOAM034F | 20 | 3/4" | - | - | - | - |
| DKOAM100F | 25 | 1" | - | - | - | - |
