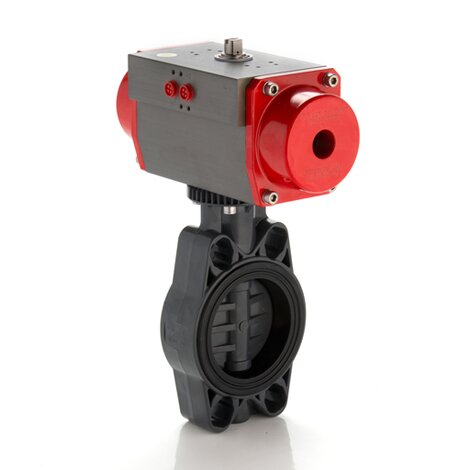

FEOV/CP NC - Pneumatically actuated butterfly valve

Caracteristici Tehnice

Disk in PVC-U with through shaft

Zinc plated square section steel stem completely isolated from the fluid complying with standard ISO 5211:

DN 40÷65:11 mm

DN 80÷100:14 mm

DN 125÷150:17 mm

DN 200:22mm

Can also be installed as an end line valve, bottom discharge valve or tank dump valve

Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations

Possibility of directly installing pneumatic and/or electric actuators with a standard drilling pattern according to standard ISO 5211 F05, F07, F10

Referință	DN	d	PN	L	Greutate	Material
FEOVNC050E	40	50-1''1/2	-	-	-	-
FEOVNC063E	50	63-2''	-	-	-	-
FEOVNC075E	65	75-2''1/2	-	-	-	-
FEOVNC050F	40	50-1''1/2	-	-	-	-
FEOVNC063F	50	63-2''	-	-	-	-
FEOVNC075F	65	75-2''1/2	-	-	-	-
FEOVNC090E	80	90-3''	-	-	-	-
FEOVNC110E	100	110-4''	-	-	-	-
FEOVNC140E	125	*125/140-5''	-	-	-	-
FEOVNC160E	150	160-6''	-	-	-	-
