FKOC/CP DA LUG ANSI - Pneumatically actuated butterfly valve - FIP PVC-C Pneumatically actuated valvesFIP
Pneumatically actuated valves
Material corp
PVC-C
Material etanșare
EPDM
Variante disponibile
3 dimensiuni DN

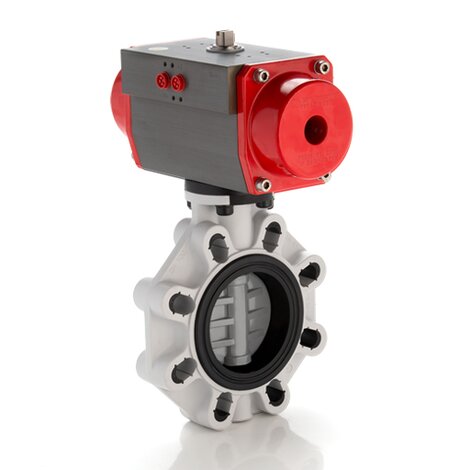

FKOC/CP DA LUG ANSI - Pneumatically actuated butterfly valve

Caracteristici Tehnice

PVC-U, PVCC, PP-H, ABS and PVDF through shaft disk
Overall dimensions of the valve in accordance with standard ISO 5752 (DN 40÷200 Medium Series 25, DN 250÷300 Long Series 16) and DIN 3202 K2 and ISO 5752 (DN 65÷200 K2, DN 250÷300 K3)
Can also be installed as an end line valve, bottom discharge valve or tank dump valve
Special Lug version PN 10 fully drilled to DIN 2501 or ANSI B16.5 cl.150 with molded-in AISI 316 stainless steel threaded inserts
Valve material compatibility with water conveyance, drinking water and other food substances according to current regulations
Possibility of installing pneumatic and/or electric actuators by applying ISO standard drilling PP-GR flanges. DN 40÷200 valve fitted with plate with rack in PP-GR. For actuated versions with flange drilled according to ISO 5211 F05, F07, F10. DN 250÷400 valve, fitted with one-piece top flange in high mechanical strength PP-GR with mounting flange for internal components drilled according to standard ISO 5211 F10 (excluding DN 350÷400), F12, F14.

Documentație

FK CE - FK CP DN 40÷400.pdfFK CE-CP DN 40-400.pdf
Solicită OfertăSună Acum

Informații Suplimentare

  • Disponibil pe stoc sau la comandă
  • Suport tehnic complet pentru instalare
  • Certificat de conformitate inclus
  • Livrare în toată România

Specificații (16 variante)

ReferințăDNdPNLGreutateMaterial
FKOALCDA212E652''1/2----
FKOALCDA212F652''1/2----
FKOALCDA300E803''----
FKOALCDA400E1004''----
FKOALCDA500E1255''----
FKOALCDA600E1506''----
FKOALCDA800E2008''----
FKOALCDA300F803''----
FKOALCDA400F1004''----
FKOALCDA500F1255''----
