FIPManual valves
Material corp
PVC-C
Material etanșare
EPDM

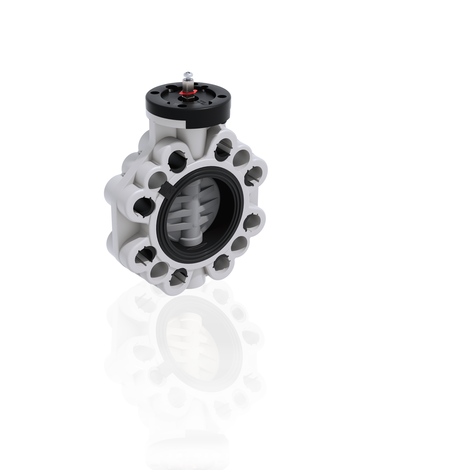

FKOC/FM - Butterfly valve
Caracteristici Tehnice
Interchangeable Disk in PVC-C with through shaft, available in different thermoplastic materials:PVC-U, PP-H, ABS, PVDF
Overall dimensions of the valve in accordance with standard ISO 5752 (DN 40÷200 Medium Series 25, DN 250÷ 300 Long Series 16) and DIN 3202 K2 and ISO 5752 (DN 65÷200 K2, DN 250÷300 K3)
Can also be installed as an end line valve, bottom discharge valve or tank dump valve
Special Lug version PN 10 fully drilled to DIN 2501 or ANSI B16.5 cl.150 with molded-in AISI 316 stainless steel threaded inserts
Possibility of installing a manual reducer or pneumatic and/or electric actuators by applying ISO standard drilling pattern PP-GR flanges. DN 40 ÷ 200 valve fitted with plate with rack in PP-GR. For actuated versions with flange drilled according to ISO 5211 F05, F07, F10
DN 250÷300 valve, fitted with one-piece top flange in high mechanical strength PP-GR with mounting flange for internal components with drilling according to standard ISO 5211 F10, F12, F14
Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
Documentație
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (31 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| FKOCFM050E | 40 | - | - | - | - | - |
| FKOACFM810E | **250 | - | - | - | - | - |
| FKOCFM315E | *300 | - | - | - | - | - |
| FKOCFM280E | *250 | - | - | - | - | - |
| FKOCFM225E | 200 | - | - | - | - | - |
| FKOCFM160E | 150 | - | - | - | - | - |
| FKOCFM140E | 125 | - | - | - | - | - |
| FKOCFM110E | 100 | - | - | - | - | - |
| FKOCFM090E | 80 | - | - | - | - | - |
| FKOCFM075E | 65 | - | - | - | - | - |
