FIPElectrically actuated valves
Material corp
PP-H
Material etanșare
EPDM

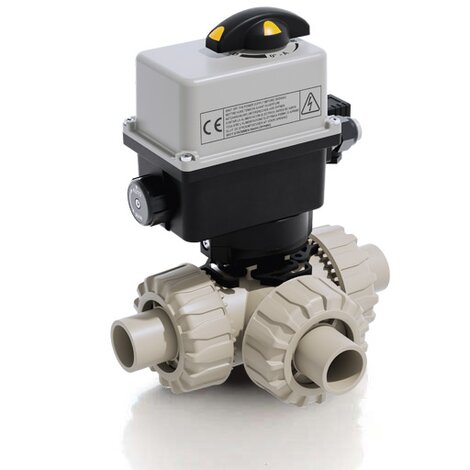

LKDDM/CE 24 V AC/DC - Electrically actuated DUAL BLOCK® 3-way ball valve
Caracteristici Tehnice
Joint system for solvent welding (PVC-U and PVC-C only), for welding (PP-H only), for threading
Patented SEAT STOP ® ball seat carrier system that lets you micro-adjust ball seats and minimise axial force effects
Easy radial disassembly allowing quick replacement of O-rings and ball seats without any need for tools
Radial dismounting valve body (True Union) made for PVC-U, PVC-C and PP-H injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
Option of disassembling downstream pipes with the valve in the closed position
High surface finish stem with double O-Ring and double connection key to the ball, equipped with visual ball position indicator for correct handle installation
Integrated bracket for valve anchoring
Possibility of installing pneumatic and/or electric actuators thanks to the robust anchor tower for easy and quick automation using the PowerQuick module
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (12 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| LKDDMEL020E1 | 15 | 20 | - | - | - | - |
| LKDDMEL025E1 | 20 | 25 | - | - | - | - |
| LKDDMEL032E1 | 25 | 32 | - | - | - | - |
| LKDDMEL040E1 | 32 | 40 | - | - | - | - |
| LKDDMEL050E1 | 40 | 50 | - | - | - | - |
| LKDDMEL063E1 | 50 | 63 | - | - | - | - |
| LKDDMEL020F1 | 15 | 20 | - | - | - | - |
| LKDDMEL025F1 | 20 | 25 | - | - | - | - |
| LKDDMEL032F1 | 25 | 32 | - | - | - | - |
| LKDDMEL040F1 | 32 | 40 | - | - | - | - |
