FIPManual valves
Material corp
PP-H
Material etanșare
EPDM

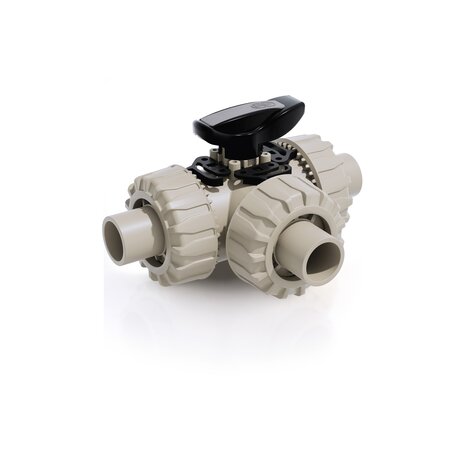

LKDDM - DUAL BLOCK® 3-way ball valve
Caracteristici Tehnice
Connection system for weld and threaded joints
Patented SEAT STOP ® ball seat carrier system that lets you micro-adjust ball seats and minimise axial force effects
Easy radial disassembly allowing quick replacement of O-rings and ball seats without any need for tools
PN10 True Union valve body made for PP-H injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
Option of disassembling downstream pipes with the valve in the closed position
High surface finish stem with double O-Ring and double groove ball connection, equipped with optical position indicator for correct handle installation
Integrated bracket for valve anchoring
Possibility of installing pneumatic and/or electric actuators thanks to the robust integrated bracket for valve anchoring for easy and quick automation using the Power Quick module (optional)
Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
Documentație
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (12 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| LKDDM020E | 15 | 20 | - | - | - | - |
| LKDDM025E | 20 | 25 | - | - | - | - |
| LKDDM032E | 25 | 32 | - | - | - | - |
| LKDDM040E | 32 | 40 | - | - | - | - |
| LKDDM050E | 40 | 50 | - | - | - | - |
| LKDDM063E | 50 | 63 | - | - | - | - |
| LKDDM020F | 15 | 20 | - | - | - | - |
| LKDDM025F | 20 | 25 | - | - | - | - |
| LKDDM032F | 25 | 32 | - | - | - | - |
| LKDDM040F | 32 | 40 | - | - | - | - |
