LKDFV/CP SA - Pneumatically actuated DUAL BLOCK® 3-way ball valve - FIP PVC-U Pneumatically actuated valvesFIP
Pneumatically actuated valves
Material corp
PVC-U
Material etanșare
EPDM

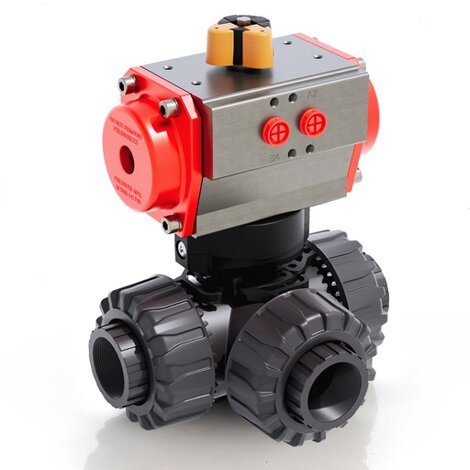

LKDFV/CP SA - Pneumatically actuated DUAL BLOCK® 3-way ball valve

Caracteristici Tehnice

Joint system for solvent welding (PVC-U and PVC-C only), for welding (PP-H only), for threading
Patented SEAT STOP ® ball seat carrier system that lets you micro-adjust ball seats and minimise axial force effects
Easy radial disassembly allowing quick replacement of O-rings and ball seats without any need for tools
Radial dismounting valve body (True Union) made for PVC-U, PVC-C and PP-H injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
Option of disassembling downstream pipes with the valve in the closed position
High surface finish stem with double O-Ring and double connection key to the ball, equipped with visual ball position indicator for correct handle installation
Integrated bracket for valve anchoring
Possibility of installing pneumatic and/or electric actuators thanks to the robust anchor tower for easy and quick automation using the PowerQuick module

Documentație

TKD CE - TKD CP DN 10÷50.pdfTKD-CE-CP DN 10-50.pdf
Solicită OfertăSună Acum

Informații Suplimentare

  • Disponibil pe stoc sau la comandă
  • Suport tehnic complet pentru instalare
  • Certificat de conformitate inclus
  • Livrare în toată România

Specificații (14 variante)

ReferințăDNdPNLGreutateMaterial
LKDFVSA038E110-----
LKDFVSA012E115-----
LKDFVSA034E120-----
LKDFVSA100E125-----
LKDFVSA114E132-----
LKDFVSA112E140-----
LKDFVSA200E150-----
LKDFVSA038F110-----
LKDFVSA012F115-----
LKDFVSA034F120-----
