FIPManual valves
Material corp
PVC-U
Material etanșare
EPDM

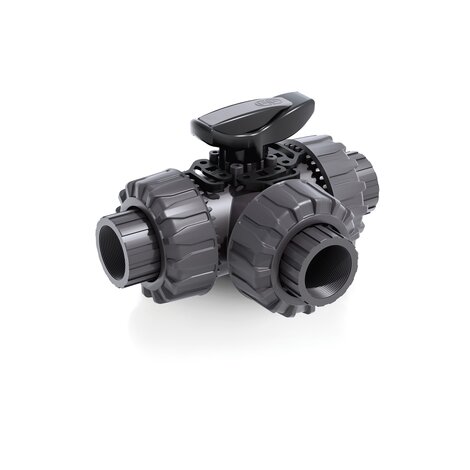

LKDNV - DUAL BLOCK® 3-way ball valve
Caracteristici Tehnice
Connection system for solvent weld, threaded and flanged joints
Patented SEAT STOP ® ball carrier system that lets you micro-adjust ball seats and minimise axial force effects
Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
Option of dismounting downstream pipes with the valve in the closed position
High surface finish stem with double O-Ring and double connection key to the ball, equipped with visual ball position indicator for correct handle installation
Integrated bracket for valve anchoring
Possibility of installing pneumatic and/or electric actuators thanks to the robust anchor tower for easy and quick automation using the Power Quick module (optional)
Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
Documentație
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (14 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| LKDNV038E | 10 | - | - | - | - | - |
| LKDNV012E | 15 | - | - | - | - | - |
| LKDNV034E | 20 | - | - | - | - | - |
| LKDNV100E | 25 | - | - | - | - | - |
| LKDNV114E | 32 | - | - | - | - | - |
| LKDNV112E | 40 | - | - | - | - | - |
| LKDNV200E | 50 | - | - | - | - | - |
| LKDNV038F | 10 | - | - | - | - | - |
| LKDNV012F | 15 | - | - | - | - | - |
| LKDNV034F | 20 | - | - | - | - | - |
