FIPPipes
Material corp
PVC-A

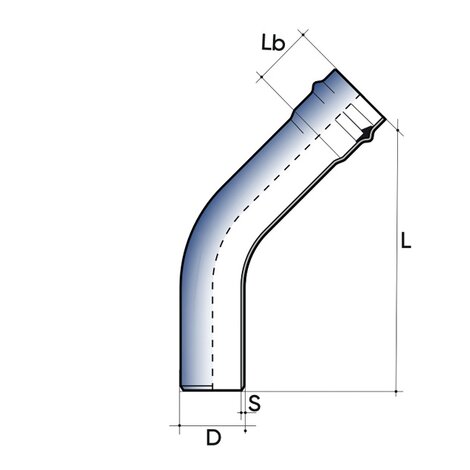

POWER-LOCK VDA® PN10 - 45° bend
Caracteristici Tehnice
Size range:d 63 ÷ 400 (mm); Degrees: 45°
Nominal pressure:PN10
Temperature range:0 °C ÷ 60 °C
Coupling standards:FORSHEDA JOINT, gluing on request
Reference standards:Curves produced from certified pipes: KQ KIWA QUALITY KIP-105133- BSPAS27
D.M. No.174/2004-potability
UNIEN 1622- smell and taste threshold
Bend material:PVC-A colour BLUE RAL 5010
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (14 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| PBVDAPN10063F4L | - | - | - | - | - | - |
| PBVDAPN10075F4L | - | - | - | - | - | - |
| PBVDAPN10090F4L | - | - | - | - | - | - |
| PBVDAPN10110F4L | - | - | - | - | - | - |
| PBVDAPN10125F4L | - | - | - | - | - | - |
| PBVDAPN10140F4L | - | - | - | - | - | - |
| PBVDAPN10160F4L | - | - | - | - | - | - |
| PBVDAPN10200F4L | - | - | - | - | - | - |
| PBVDAPN10225F4L | - | - | - | - | - | - |
| PBVDAPN10250F4L | - | - | - | - | - | - |
