FIPElectrically actuated valves
Material corp
PVC-U
Material etanșare
EPDM

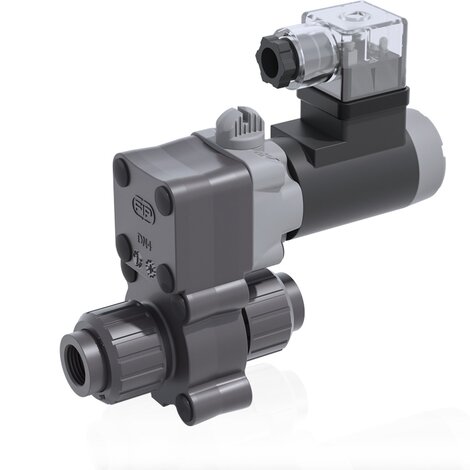

S12FV - 230V AC - true union 2-way solenoid valve
Caracteristici Tehnice
2-Way PVC-U body
Installation flexibility and ease of maintenance:high-performance solenoid electric actuator designed to exceed 5 million maintenance-free operating cycles
Adjustable circular section coil with IP65 protection class.
Integrated override with the possibility of being installed in 3 different positions.
Lever shutter in EPDM or FKM and lever in stainless steel.
DIN 43650 electrical connector supplied as standard:includes LED indicator light and rectifier (in the case of an AC coil).
Documentație
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (12 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| S12FV0414E230A | 4 | 1/4" | - | - | - | - |
| S12FV0438E230A | 4 | 3/8" | - | - | - | - |
| S12FV0614E230A | 6 | 1/4" | - | - | - | - |
| S12FV0638E230A | 6 | 3/8" | - | - | - | - |
| S12FV0814E230A | 8 | 1/4" | - | - | - | - |
| S12FV0838E230A | 8 | 3/8" | - | - | - | - |
| S12FV0414F230A | 4 | 1/4" | - | - | - | - |
| S12FV0438F230A | 4 | 3/8" | - | - | - | - |
| S12FV0614F230A | 6 | 1/4" | - | - | - | - |
| S12FV0638F230A | 6 | 3/8" | - | - | - | - |
