TKDDV/CP SA - Pneumatically actuated DUAL BLOCK® 3-way ball valve - FIP PVC-U Pneumatically actuated valvesFIP
Pneumatically actuated valves
Material corp
PVC-U
Material etanșare
EPDM

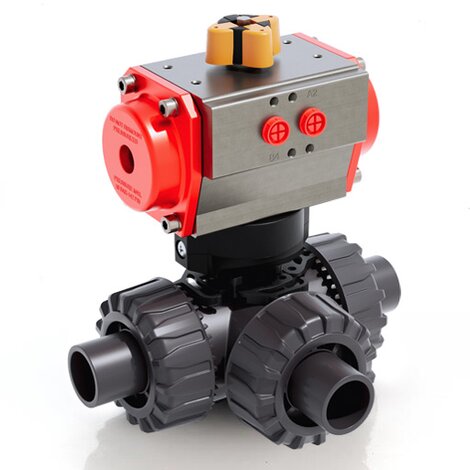

TKDDV/CP SA - Pneumatically actuated DUAL BLOCK® 3-way ball valve

Caracteristici Tehnice

Joint system for solvent welding (PVC-U and PVC-C only), for welding (PP-H only), for threading
Patented SEAT STOP ® ball seat carrier system that lets you micro-adjust ball seats and minimise axial force effects
Easy radial disassembly allowing quick replacement of O-rings and ball seats without any need for tools
Radial dismounting valve body (True Union) made for PVC-U, PVC-C and PP-H injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
Option of disassembling downstream pipes with the valve in the closed position
High surface finish stem with double O-Ring and double connection key to the ball, equipped with visual ball position indicator for correct handle installation
Integrated bracket for valve anchoring
Possibility of installing pneumatic and/or electric actuators thanks to the robust anchor tower for easy and quick automation using the PowerQuick module

Documentație

TKD CE - TKD CP DN 10÷50.pdfTKD-CE-CP DN 10-50.pdf
Solicită OfertăSună Acum

Informații Suplimentare

  • Disponibil pe stoc sau la comandă
  • Suport tehnic complet pentru instalare
  • Certificat de conformitate inclus
  • Livrare în toată România

Specificații (12 variante)

ReferințăDNdPNLGreutateMaterial
TKDDVSA020E11520----
TKDDVSA025E12025----
TKDDVSA032E12532----
TKDDVSA040E13240----
TKDDVSA050E14050----
TKDDVSA063E15063----
TKDDVSA020F11520----
TKDDVSA025F12025----
TKDDVSA032F12532----
TKDDVSA040F13240----
