FIPPneumatically actuated valves
Material corp
PVDF

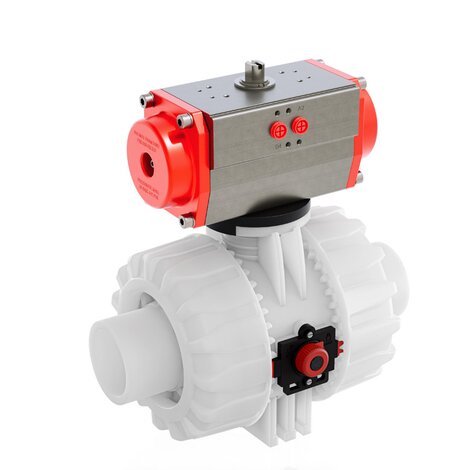

VKDDF/CP DA - Pneumatically actuated DUAL BLOCK® 2-way ball valve
Caracteristici Tehnice
Joint system for solvent welding (PVC-U and PVC-C only), for welding (PP-H and PVDF only), for threading and flanging
Patented SEAT STOP ® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect.
Easy radial disassembly allowing quick replacement of O-rings and ball seats without any need for tools
Radial dismounting valve body (True Union) made for PVC-U, PVC-C and PP-H injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
Option of disassembling downstream pipes with the valve in the closed position
Floating full bore ball with high surface finish
Integrated bracket for valve anchoring
Possibility of installing a gear box or pneumatic and/or electric actuators by applying an ISO standard bore PP-GR flange
Stainless steel co-moulded stem, with square section as per ISO 5211.
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (3 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDDFDA075F | 65 | 75 | - | - | - | - |
| VKDDFDA090F | 80 | 90 | - | - | - | - |
| VKDDFDA110F | 100 | 110 | - | - | - | - |
