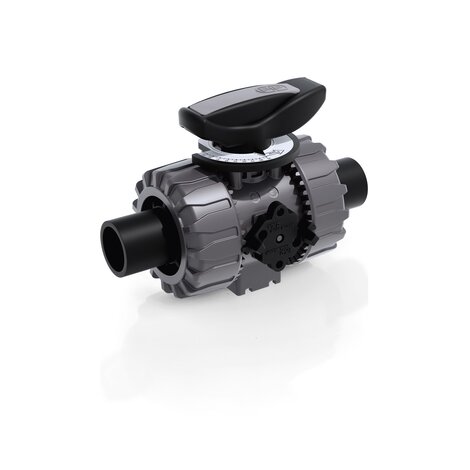

VKRBEV - DUAL BLOCK® regulating ball valve

Caracteristici Tehnice

Connection system for solvent weld, threaded and flanged joints

Patented SEAT STOP ® ball carrier system that lets you micro-adjust seals and minimise the axial force effect

Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools

PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites

Option of dismounting downstream pipes with the valve in the closed position

High surface finish stem with double O-Ring and double connection key to ball

Integrated bracket for valve anchoring

Ball seat carrier can be adjusted using the Easytorque adjustment kit

Actuation option:version with electric modulating actuator with 4-20 mA / 0-10 V inlet and 4-20 mA / 0-10 V outlet to monitor the position

Valve suitable for carrying fluids that are clean and free of suspended particles

Referință	DN	d	PN	L	Greutate	Material
VKRBEV020E	15	20	-	-	-	-
VKRBEV025E	20	25	-	-	-	-
VKRBEV032E	25	32	-	-	-	-
VKRBEV040E	32	40	-	-	-	-
VKRBEV050E	40	50	-	-	-	-
VKRBEV063E	50	63	-	-	-	-
VKRBEV020F	15	20	-	-	-	-
VKRBEV025F	20	25	-	-	-	-
VKRBEV032F	25	32	-	-	-	-
VKRBEV040F	32	40	-	-	-	-
