FIPElectrically actuated valves
Material corp
PVDF

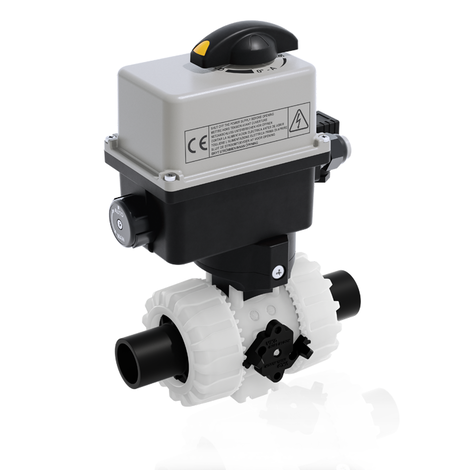

VKRBF/CE 90-240 V AC 4-20 mA - Electrically actuated DUAL BLOCK® regulating ball valve
Caracteristici Tehnice
Joint system for solvent welding (PVC-U only), for welding (PP-H and PVDF only), for threading and flanging
Patented SEAT STOP ® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect.
Easy radial disassembly allowing quick replacement of O-rings and ball seats without any need for tools
Radial dismounting valve body (True Union) made for PVC-U, PVC-C and PVDF-H injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
Option of disassembling downstream pipes with the valve in the closed position
High surface finish stem with double O-Ring and double groove ball connection
Integrated bracket for valve anchoring
Ball seat carrier can be adjusted using the Easytorque adjustment kit
Actuation option:version with electric modulating actuator with 4-20 mA / 0-10 V inlet and 4-20 mA / 0-10 V outlet to monitor the position
Valve suitable for carrying fluids that are clean and free of suspended particles
Documentație
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKRBFEM020F0E | 15 | 20 | - | - | - | - |
| VKRBFEM025F0E | 20 | 25 | - | - | - | - |
| VKRBFEM032F0E | 25 | 32 | - | - | - | - |
| VKRBFEM040F0E | 32 | 40 | - | - | - | - |
| VKRBFEM050F0E | 40 | 50 | - | - | - | - |
| VKRBFEM063F0E | 50 | 63 | - | - | - | - |
