VKRBM/CE 90-240 V AC 4-20 mA - Electrically actuated DUAL BLOCK® regulating ball valve - FIP PP-H Electrically actuated valvesFIP
Electrically actuated valves
Material corp
PP-H
Material etanșare
EPDM

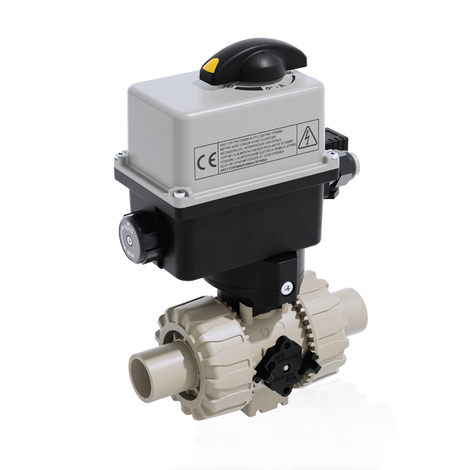

VKRBM/CE 90-240 V AC 4-20 mA - Electrically actuated DUAL BLOCK® regulating ball valve

Caracteristici Tehnice

Joint system for solvent welding (PVC-U only), for welding (PP-H and PVDF only), for threading and flanging
Patented SEAT STOP ® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect.
Easy radial disassembly allowing quick replacement of O-rings and ball seats without any need for tools
Radial dismounting valve body (True Union) made for PVC-U, PVC-C and PVDF-H injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
Option of disassembling downstream pipes with the valve in the closed position
High surface finish stem with double O-Ring and double groove ball connection
Integrated bracket for valve anchoring
Ball seat carrier can be adjusted using the Easytorque adjustment kit
Actuation option:version with electric modulating actuator with 4-20 mA / 0-10 V inlet and 4-20 mA / 0-10 V outlet to monitor the position
Valve suitable for carrying fluids that are clean and free of suspended particles

Documentație

VKR CE DN 10÷50.pdfVKR-CE DN 10-50.pdf
Solicită OfertăSună Acum

Informații Suplimentare

  • Disponibil pe stoc sau la comandă
  • Suport tehnic complet pentru instalare
  • Certificat de conformitate inclus
  • Livrare în toată România

Specificații (12 variante)

ReferințăDNdPNLGreutateMaterial
VKRBMEM020E0E1520----
VKRBMEM025E0E2025----
VKRBMEM032E0E2532----
VKRBMEM040E0E3240----
VKRBMEM050E0E4050----
VKRBMEM063E0E5063----
VKRBMEM020F0E1520----
VKRBMEM025F0E2025----
VKRBMEM032F0E2532----
VKRBMEM040F0E3240----
