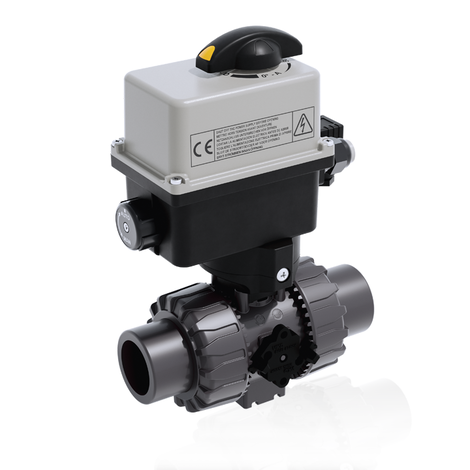

VKRJV/CE 24 V AC/DC 4-20 mA - Electrically actuated DUAL BLOCK® regulating ball valve - FIP PVC-U Electrically actuated valvesFIP
Electrically actuated valves
Material corp
PVC-U
Material etanșare
EPDM

VKRJV/CE 24 V AC/DC 4-20 mA - Electrically actuated DUAL BLOCK® regulating ball valve

Caracteristici Tehnice

Joint system for solvent welding (PVC-U only), for welding (PP-H and PVDF only), for threading and flanging
Patented SEAT STOP ® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
Easy radial disassembly allowing quick replacement of O-rings and ball seats without any need for tools
Radial dismounting valve body (True Union) made for PVC-U, PVC-C and PVDF-H injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
Option of disassembling downstream pipes with the valve in the closed position
High surface finish stem with double O-Ring and double groove ball connection
Integrated bracket for valve anchoring
Ball seat carrier can be adjusted using the Easytorque adjustment kit
Actuation option:version with electric modulating actuator with 4-20 mA / 0-10 V inlet and 4-20 mA / 0-10 V outlet to monitor the position
Valve suitable for carrying fluids that are clean and free of suspended particles

Documentație

VKR CE DN 10÷50.pdfVKR-CE DN 10-50.pdf
Solicită OfertăSună Acum

Informații Suplimentare

  • Disponibil pe stoc sau la comandă
  • Suport tehnic complet pentru instalare
  • Certificat de conformitate inclus
  • Livrare în toată România

Specificații (12 variante)

ReferințăDNdPNLGreutateMaterial
VKRJVEL012E0E151/2”----
VKRJVEL034E0E203/4”----
VKRJVEL100E0E251”----
VKRJVEL114E0E321” 1/4----
VKRJVEL112E0E401” 1/2----
VKRJVEL200E0E502”----
VKRJVEL012F0E151/2"----
VKRJVEL034F0E203/4"----
VKRJVEL100F0E251"----
VKRJVEL112F0E401" 1/2----
