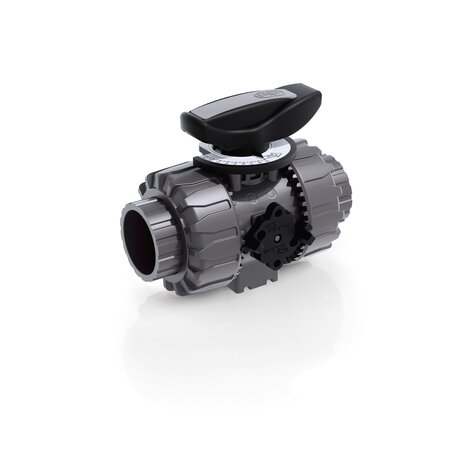

VKRLV - DUAL BLOCK® regulating ball valve

Caracteristici Tehnice

Connection system for solvent weld, threaded and flanged joints

Patented SEAT STOP ® ball carrier system that lets you micro-adjust seals and minimise the axial force effect

Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools

PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites

Option of dismounting downstream pipes with the valve in the closed position

High surface finish stem with double O-Ring and double connection key to ball

Integrated bracket for valve anchoring

Ball seat carrier can be adjusted using the Easytorque adjustment kit

Actuation option:version with electric modulating actuator with 4-20 mA / 0-10 V inlet and 4-20 mA / 0-10 V outlet to monitor the position

Valve suitable for carrying fluids that are clean and free of suspended particles

Referință	DN	d	PN	L	Greutate	Material
VKRLV038E	10	3/8”	-	-	-	-
VKRLV012E	15	1/2”	-	-	-	-
VKRLV034E	20	3/4”	-	-	-	-
VKRLV100E	25	1”	-	-	-	-
VKRLV114E	32	1” 1/4	-	-	-	-
VKRLV112E	40	1” 1/2	-	-	-	-
VKRLV200E	50	2”	-	-	-	-
VKRLV038F	10	3/8”	-	-	-	-
VKRLV012F	15	1/2”	-	-	-	-
VKRLV034F	20	3/4”	-	-	-	-
