FIPPneumatically actuated valves
Material corp
PP-H
Material etanșare
EPDM

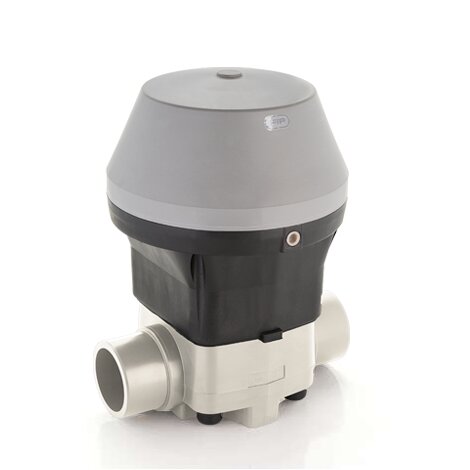

VMOAM/CP DA - Pneumatically actuated diaphragm valve
Caracteristici Tehnice
Connection system using solvent welded and flanged joints
Optimised fluid dynamic design:maximum output flow rate thanks to the optimised efficiency of the fluid dynamics that characterise the new internal geometry of the body
Robust and reliable PP-GR diaphragm actuator suited to be used in sever environmental and chemically aggressive conditions
Bonnet fastening screws in STAINLESS steel protected against the external environment by PE plugs
New flanged bodies:the new bodies, characterised by a monolithic flanged structure, are available in PVC-U, PVC-C, PP-H and PVDF. This design, free of joints between the body and flanges, greatly reduces mechanical stress and increases system performance
Documentație
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VMOAMDA300E | 80 | 3" | - | - | - | - |
| VMOAMDA400E | 100 | 4" | - | - | - | - |
| VMOAMDA300F | 80 | 3" | - | - | - | - |
| VMOAMDA400F | 100 | 4" | - | - | - | - |
| VMOAMDA300P | 80 | 3" | - | - | - | - |
| VMOAMDA400P | 100 | 4" | - | - | - | - |
