FIPManual valves
Material corp
ABS
Material etanșare
EPDM

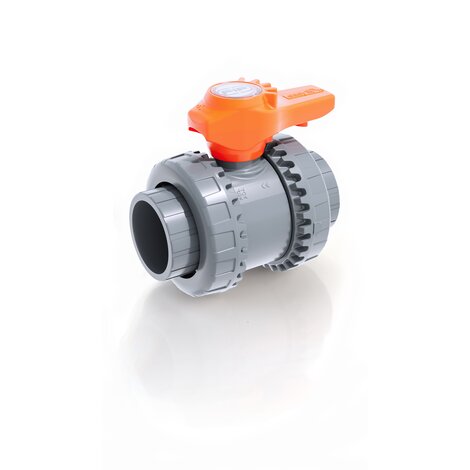

VXEIA - Easyfit 2-way ball valve
Caracteristici Tehnice
Patented Easyfit system :innovative mechanism based on the principle of the bevel gear pair that controls valve union nut rotation during installation
Connection system for solvent weld and threaded joints
Valve material compatibility (PVC-C) and elastomer seal elements (EPDM or FKM), with water, drinking water and other food substances as per current regulations
Easy radial disassembly allowing quick replacement of O-rings and ball seats without any need for tools
PN16 True Union valve body made for PVC-C injection moulding and European Directive 2014/68/EU (PED) compliant for pressurised equipment. ISO 9393 compliant test requirements
Fully interchangeable with previous VX Ergo series models
Option of disassembling downstream pipes with the valve in the closed position
Floating full bore ball with high surface finish made in CNC work stations to achieve precise dimensional tolerance and high surface finish
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (14 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VXEIA016E | 10 | 16 | - | - | - | - |
| VXEIA020E | 15 | 20 | - | - | - | - |
| VXEIA025E | 20 | 25 | - | - | - | - |
| VXEIA032E | 25 | 32 | - | - | - | - |
| VXEIA040E | 32 | 40 | - | - | - | - |
| VXEIA050E | 40 | 50 | - | - | - | - |
| VXEIA063E | 50 | 63 | - | - | - | - |
| VXEIA016F | 10 | 16 | - | - | - | - |
| VXEIA020F | 15 | 20 | - | - | - | - |
| VXEIA025F | 20 | 25 | - | - | - | - |
