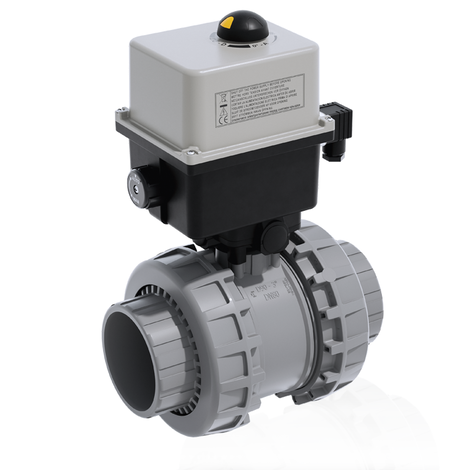

VXEIC/CE 90-240 V AC - electrically actuated EASYFIT 2-way ball valve

Caracteristici Tehnice

Connection system using solvent welded and threaded joints

Patented Easyfit system:innovative mechanism based on the multifunctional handle quick release mechanism that permits union nut rotation during valve installation and ball seat carrier adjustment

Valve material compatibility (U PVC-C) and elastomer seal elements (EPDM or FKM), with water, drinking water and other food substances as per current regulations

Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools

PN16 radial dismounting valve body (True Union) made for PVC-C injection moulding and European Directive 2014/68/EC compliant for PED pressurised equipment. ISO 9393 compliant test requirements. Maximum fluid pressure for valve operation 6 bar.

Valve body with built in anchoring frame for the special Power Quick module dedicated to accessory or pneumatic and electric actuator installation

Option of disassembling downstream pipes with the valve in the closed position

Floating full bore ball with high surface finish made in CNC work stations to achieve precise dimensional tolerance and high surface finish
