Diaphragm valve
Material corp
PVC-U
Material etanșare
EPDM
Variante disponibile
7 dimensiuni DN

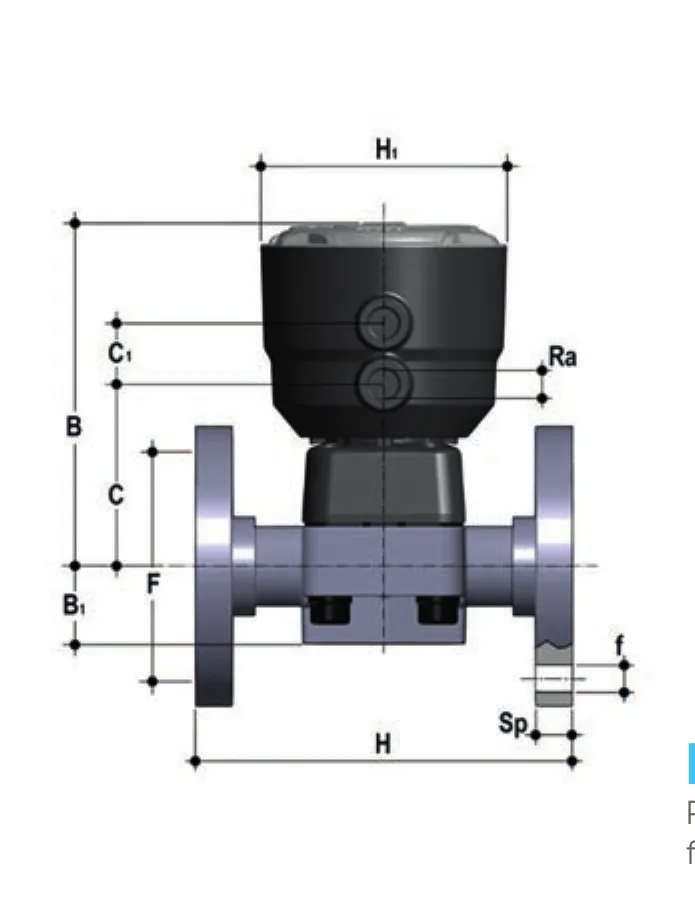

DKBOV/CP NC — Pneumatically actuated diaphragm valve with monolithic flanged body, drilled PN10/16, Normally Closed
Pneumatically actuated diaphragm valve with monolithic flanged body, drilled PN10/16. Face to face according to EN 558-1. Normally Closed function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (7 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| DKBOVNC020E | 15 | 20 | 6 | - | 875 g | PVC-U |
| DKBOVNC025E | 20 | 25 | 6 | - | 955 g | PVC-U |
| DKBOVNC032E | 25 | 32 | 6 | - | 1221 g | PVC-U |
| DKBOVNC040E | 32 | 40 | 6 | - | 1411 g | PVC-U |
| DKBOVNC050E | 40 | 50 | 6 | - | 3136 g | PVC-U |
| DKBOVNC063E | 50 | 63 | 6 | - | 6351 g | PVC-U |
| DKBOVNC075E | 65 | 75 | 6 | - | 6952 g | PVC-U |
