Diaphragm valve
Material corp
PVC-C
Material etanșare
EPDM code / FKM code / PTFE
Variante disponibile
6 dimensiuni DN

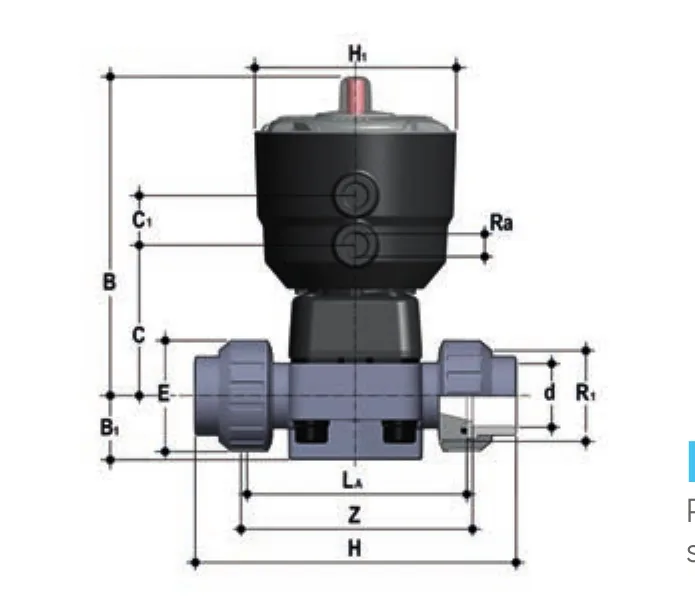

DKUIC/CP DA — Pneumatically actuated diaphragm valve (DA)
Pneumatically actuated diaphragm valve with female union ends, metric series. Double-Acting function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| DKUICDA020E / DKUICDA020F / DKUICDA020P | 15 | 20 | 10 | - | 624 g | PVC-C |
| DKUICDA025E / DKUICDA025F / DKUICDA025P | 20 | 25 | 10 | - | 691 g | PVC-C |
| DKUICDA032E / DKUICDA032F / DKUICDA032P | 25 | 32 | 10 | - | 927 g | PVC-C |
| DKUICDA040E / DKUICDA040F / DKUICDA040P | 32 | 40 | 10 | - | 1060 g | PVC-C |
| DKUICDA050E / DKUICDA050F / DKUICDA050P | 40 | 50 | 10 | - | 2266 g | PVC-C |
| DKUICDA063E / DKUICDA063F / DKUICDA063P | 50 | 63 | 10 | - | 4168 g | PVC-C |
