Diaphragm valve
Material corp
PVDF
Material etanșare
EPDM / FKM / PTFE
Variante disponibile
6 dimensiuni DN

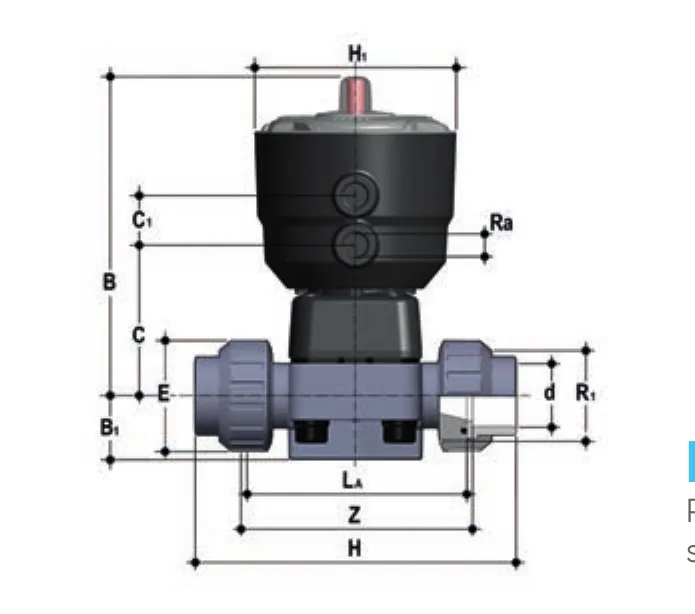

DKUIF/CP DA — Pneumatically actuated diaphragm valve, female union ends for socket fusion, Double-Acting
Pneumatically actuated diaphragm valve with female union ends for socket fusion, metric series. Double-Acting function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| DKUIFDA020E / DKUIFDA020F / DKUIFDA020P | 15 | 20 | 10 | - | 666 g | PVDF |
| DKUIFDA025E / DKUIFDA025F / DKUIFDA025P | 20 | 25 | 10 | - | 751 g | PVDF |
| DKUIFDA032E / DKUIFDA032F / DKUIFDA032P | 25 | 32 | 10 | - | 1020 g | PVDF |
| DKUIFDA040E / DKUIFDA040F / DKUIFDA040P | 32 | 40 | 10 | - | 1192 g | PVDF |
| DKUIFDA050E / DKUIFDA050F / DKUIFDA050P | 40 | 50 | 10 | - | 2441 g | PVDF |
| DKUIFDA063E / DKUIFDA063F / DKUIFDA063P | 50 | 63 | 10 | - | 4651 g | PVDF |
