Butterfly valve
Material corp
PVDF
Material etanșare
FKM
Variante disponibile
4 dimensiuni DN

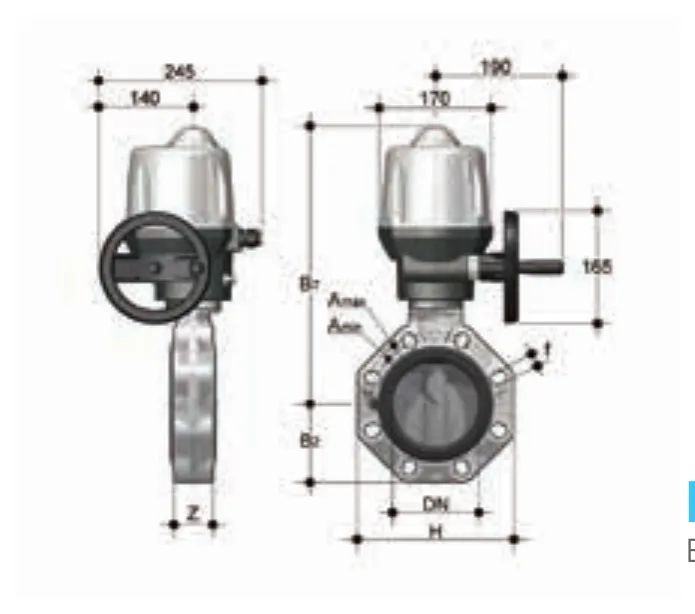

FKOF/CE 24V AC/DC DN 250-300 — Butterfly valve with electric actuator (PVDF)
FKOF/CE 24V AC/DC DN 250-300 — Butterfly valve with electric actuator 24 V AC/DC
Caracteristici Tehnice
Power supply is 230V AC for DN250-400. Other voltages upon request.
*ISO-DIN
**ANSI B16.5 cl.150
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (4 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| FKOFEE280F | *250 | 250/280 | 10 | - | 33000 g | PVDF |
| FKOFEE315F | *300 | 315 | 8 | - | 41000 g | PVDF |
| FKOAFEE810F | **250 | 10" | 10 | - | 33000 g | PVDF |
| FKOAFEE812F | **300 | 12" | 8 | - | 41000 g | PVDF |
