Butterfly valve
Material corp
PVDF
Material etanșare
FKM
Variante disponibile
4 dimensiuni DN

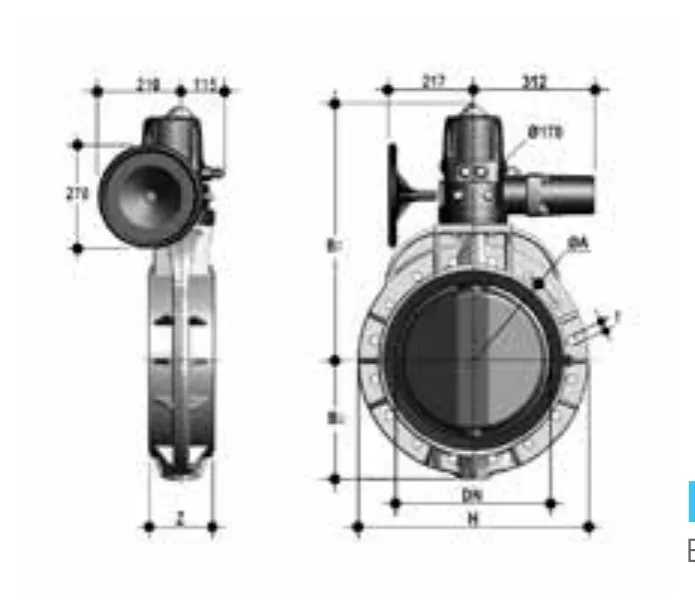

FKOF/CE 24V AC/DC DN 350-400 — Butterfly valve with electric actuator (PVDF)
FKOF/CE 24V AC/DC DN 350-400 — Butterfly valve with electric actuator 24 V AC/DC
Caracteristici Tehnice
Power supply is 230V AC for DN250-400. Other voltages upon request.
*ISO-DIN
**ANSI B16.5 cl.150
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (4 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| FKOFEE355F | *350 | 355 | 7 | - | 49395 g | PVDF |
| FKOFEE400F | *400 | 400 | 6 | - | 58295 g | PVDF |
| FKOAFEE814F | **350 | 14" | 7 | - | 49395 g | PVDF |
| FKOAFEE816F | **400 | 16" | 6 | - | 58295 g | PVDF |
