Butterfly valve
Material corp
PVDF
Material etanșare
FKM code
Variante disponibile
8 dimensiuni DN

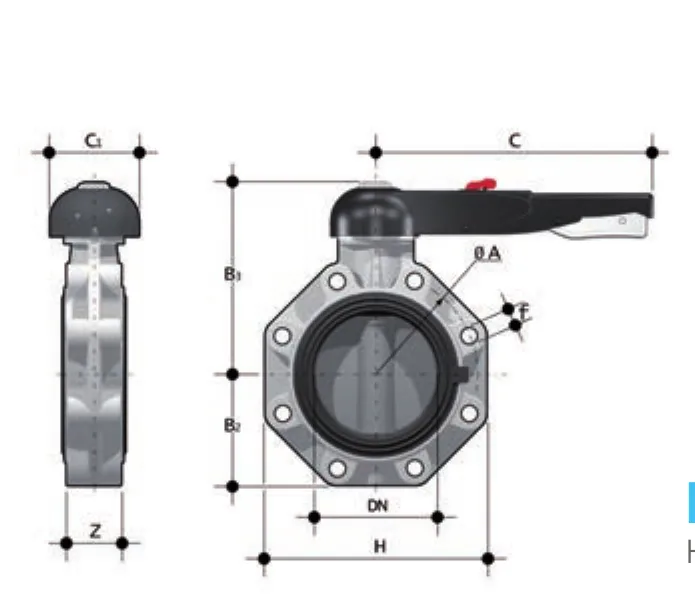

FKOF/LM LUG ANSI — Hand operated Butterfly valve, version Lug ANSI
Hand operated Butterfly valve, version Lug ANSI
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (8 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| FKOALFLM112F | 40 | 1” 1/2 | 10 | - | 1300 g | PVDF |
| FKOALFLM200F | 50 | 2” | 10 | - | 1580 g | PVDF |
| FKOALFLM212F | 65 | 2” 1/2 | 10 | - | 1970 g | PVDF |
| FKOALFLM300F | 80 | 3” | 10 | - | 2820 g | PVDF |
| FKOALFLM400F | 100 | 4” | 10 | - | 3170 g | PVDF |
| FKOALFLM500F | 125 | 5” | 10 | - | 4900 g | PVDF |
| FKOALFLM600F | 150 | 6” | 10 | - | 5700 g | PVDF |
| FKOALFLM800F | 200 | 8” | 10 | - | 8650 g | PVDF |
