Butterfly valve
Material corp
PVDF
Material etanșare
FKM code
Variante disponibile
8 dimensiuni DN

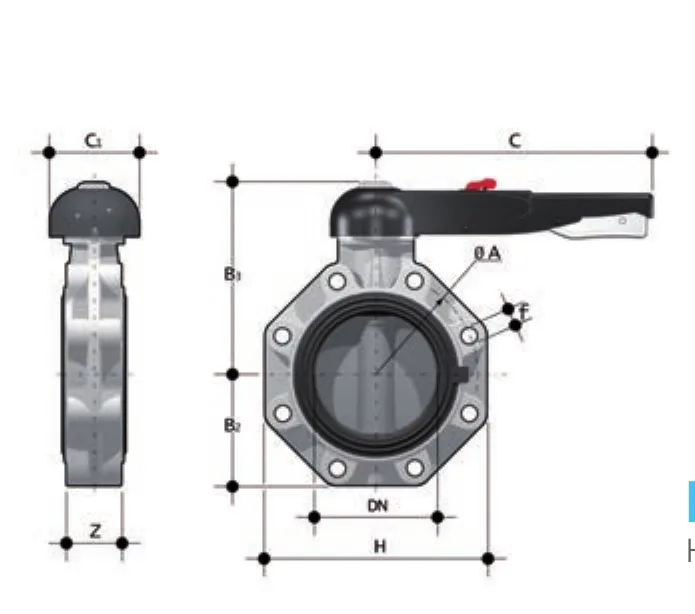

FKOF/LM LUG ISO-DIN — Hand operated Butterfly valve, version Lug ISO-DIN
Hand operated Butterfly valve, version Lug ISO-DIN
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (8 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| FKOLFLM050F | 40 | 50 | 10 | - | 1300 g | PVDF |
| FKOLFLM063F | 50 | 63 | 10 | - | 1580 g | PVDF |
| FKOLFLM075F | 65 | 75 | 10 | - | 1970 g | PVDF |
| FKOLFLM090F | 80 | 90 | 10 | - | 2820 g | PVDF |
| FKOLFLM110F | 100 | 110 | 10 | - | 3170 g | PVDF |
| FKOLFLM140F | 125 | 140 | 10 | - | 4900 g | PVDF |
| FKOLFLM160F | 150 | 160 | 10 | - | 5700 g | PVDF |
| FKOLFLM225F | 200 | 225 | 10 | - | 8650 g | PVDF |
