Butterfly valve
Material corp
PVDF
Material etanșare
FKM code
Variante disponibile
10 dimensiuni DN

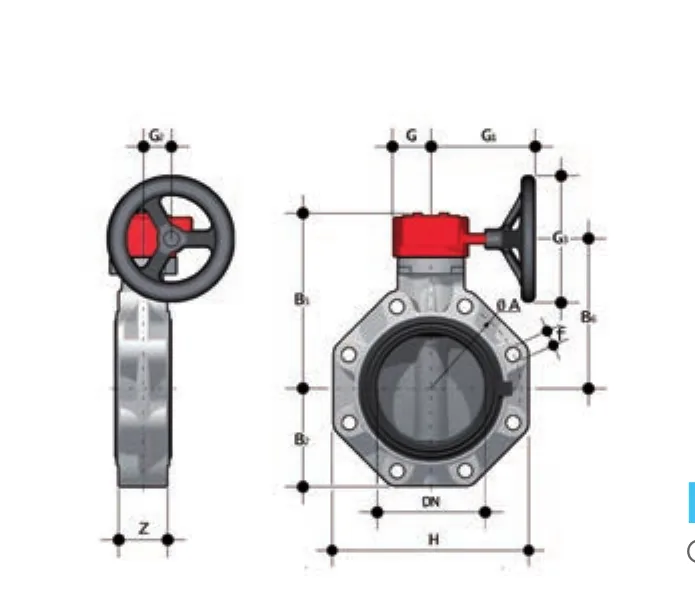

FKOF/RM LUG ANSI — Gearbox operated Butterfly valve, version Lug ANSI
Gearbox operated Butterfly valve, version Lug ANSI
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (10 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| FKOALFRM112F | 40 | 1” 1/2 | 10 | - | 2500 g | PVDF |
| FKOALFRM200F | 50 | 2” | 10 | - | 2780 g | PVDF |
| FKOALFRM212F | 65 | 2” 1/2 | 10 | - | 2900 g | PVDF |
| FKOALFRM300F | 80 | 3” | 10 | - | 3750 g | PVDF |
| FKOALFRM400F | 100 | 4” | 10 | - | 4100 g | PVDF |
| FKOALFRM500F | 125 | 5” | 10 | - | 6250 g | PVDF |
| FKOALFRM600F | 150 | 6” | 10 | - | 7050 g | PVDF |
| FKOALFRM800F | 200 | 8” | 10 | - | 11200 g | PVDF |
| FKOALFRM810F | 250 | 10” | 6 | - | 24400 g | PVDF |
| FKOALFRM812F | 300 | 12” | 6 | - | 32450 g | PVDF |
