Butterfly valve
Material corp
PP-H
Material etanșare
EPDM / FKM
Variante disponibile
5 dimensiuni DN

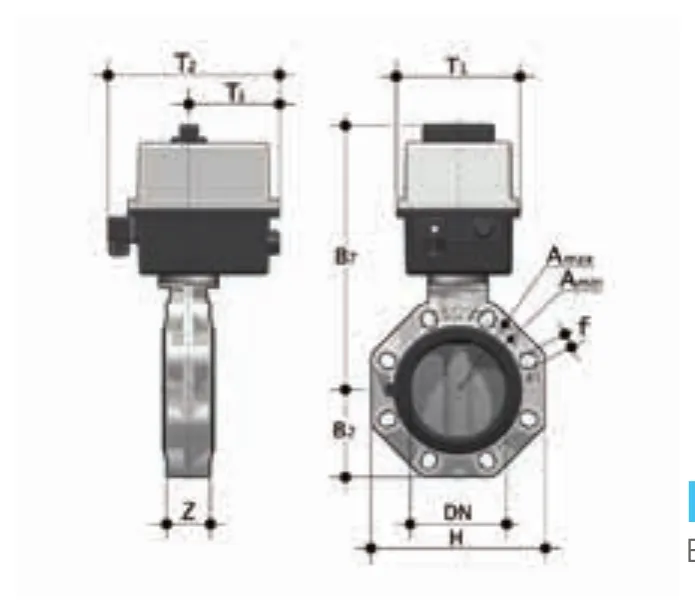

FKOM/CE 24V AC/DC DN 40-100 — Butterfly valve, electric actuator
Butterfly valve with electric actuator 24 V AC/DC
Caracteristici Tehnice
12V DC gaskets upon request
The special chamfered stubs QBM from d160 to d315 are available for installation on pipes in PP-H SDR 11 and 17.6
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (5 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| FKOMEL050E / FKOMEL050F | 40 | 50-1''1/2 | 10 | - | 1974 g | PP-H |
| FKOMEL063E / FKOMEL063F | 50 | 63-2'' | 10 | - | 2154 g | PP-H |
| FKOMEL075E / FKOMEL075F | 65 | 75-2''1/2 | 10 | - | 2400 g | PP-H |
| FKOMEL090E / FKOMEL090F | 80 | 90-3'' | 10 | - | 4100 g | PP-H |
| FKOMEL110E / FKOMEL110F | 100 | 110-4'' | 10 | - | 4450 g | PP-H |
