Butterfly valve
Material corp
PVDF
Material etanșare
FKM code
Variante disponibile
9 dimensiuni DN

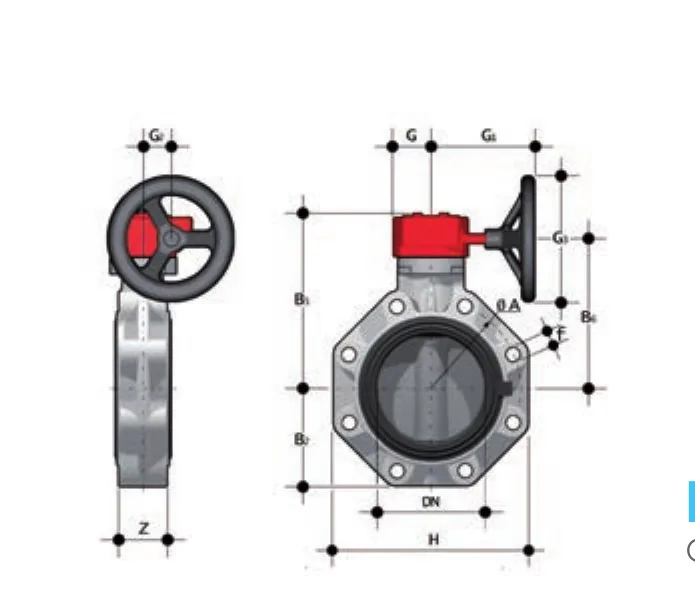

FKOM/RM LUG ISO-DIN — Gearbox operated Butterfly valve, version Lug ISO-DIN (2)
Gearbox operated Butterfly valve, version Lug ISO-DIN
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (9 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| FKOLFRM050F | 40 | 50 | 10 | - | 2500 g | PVDF |
| FKOLFRM063F | 50 | 63 | 10 | - | 2780 g | PVDF |
| FKOLFRM075F | 65 | 75 | 10 | - | 2900 g | PVDF |
| FKOLFRM090F | 80 | 90 | 10 | - | 3750 g | PVDF |
| FKOLFRM110F | 100 | 110 | 10 | - | 4100 g | PVDF |
| FKOLFRM140F | 125 | 140 | 10 | - | 6250 g | PVDF |
| FKOLFRM160F | 150 | 160 | 10 | - | 7050 g | PVDF |
| FKOLFRM225F | 200 | 225 | 10 | - | 11200 g | PVDF |
| FKOLFRM315F | 300 | 315 | 6 | - | 32450 g | PVDF |
