FL1 - Loose flange - FIP PVC-U Pressure FittingsFIP
Pressure Fittings
Material corp
PVC-U
Material etanșare
Gaskets

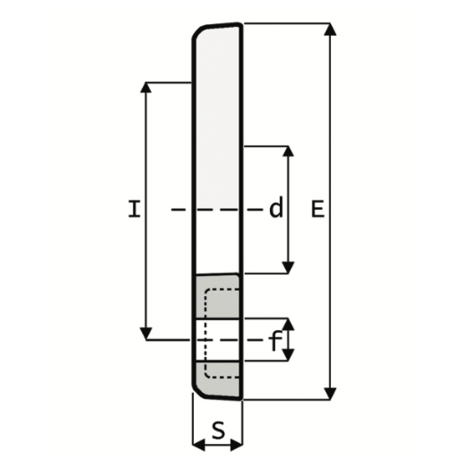

FL1 - Loose flange

Caracteristici Tehnice

Size range:
d 12 ÷ d 315 mm
Nominal pressure:PN 16 with water at 20 °C up to d 160 mm, PN 10 from d 180 to d 315
Temperature range:0 °C ÷ 60 °C
Reference standards:ISO 727, EN ISO 1452-3, EN ISO 15493, BS 4346-1, UNI EN 10226-1
Fitting material:PVC-U
Seal material:Gaskets in EPDM, on request FKM
Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430

Documentație

VALVES_ASTORE.pdfVALVOLE_ASTORE.pdf
Solicită OfertăSună Acum

Informații Suplimentare

  • Disponibil pe stoc sau la comandă
  • Suport tehnic complet pentru instalare
  • Certificat de conformitate inclus
  • Livrare în toată România

Specificații (17 variante)

ReferințăDNdPNLGreutateMaterial
1RFL11100010013216180-PVC-U
1RFL11250012514916210-PVC-U
1RFL115000NL12516616210-PVC-U
1RFL117000NL15018916240-PVC-U
1RFL12000015281665-PVC-U
1RFL121000NL20023510295-PVC-U
1RFL123000NL20025210295-PVC-U
1RFL12500020341675-PVC-U
1RFL126000NL25027810350-PVC-U
1RFL12800025030910350-PVC-U
