FLS F6.50.XX — Paddlewheel Flow Transmitter

FLS F6.50.XX Paddlewheel Flow Transmitter

Caracteristici Tehnice

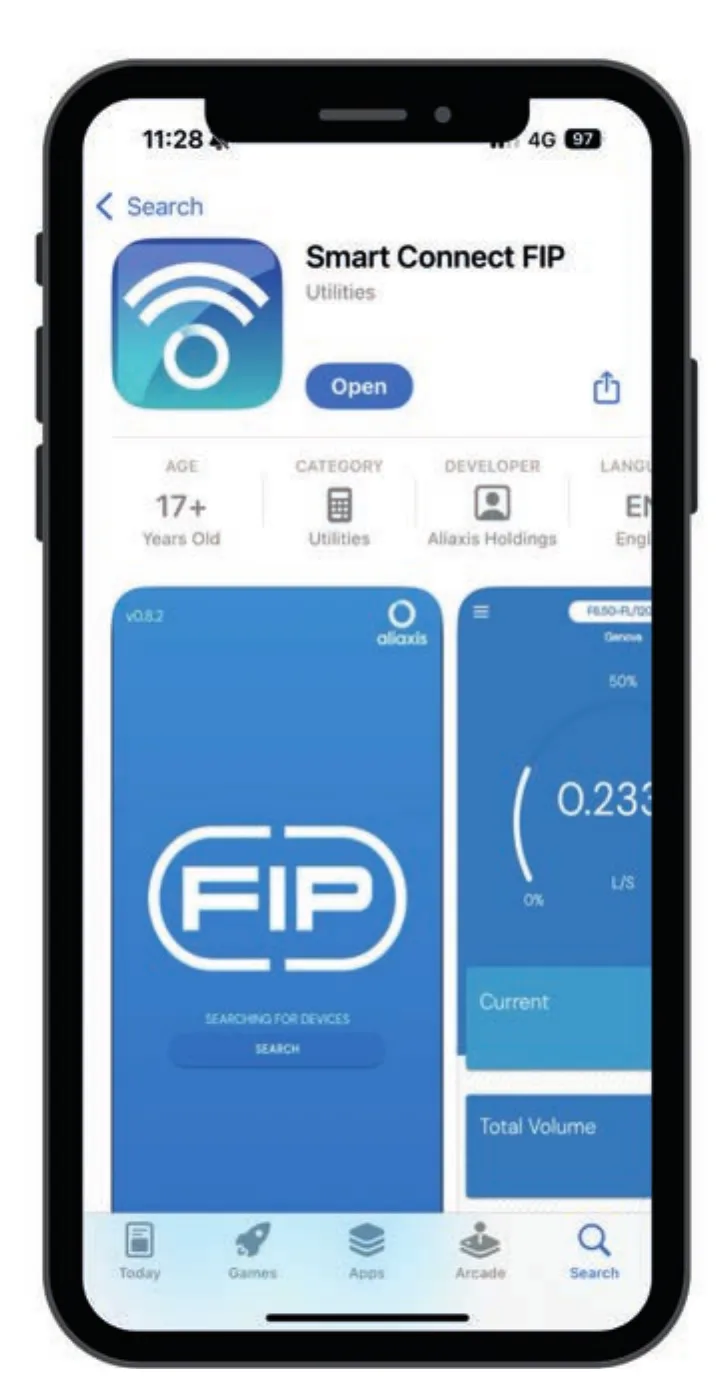

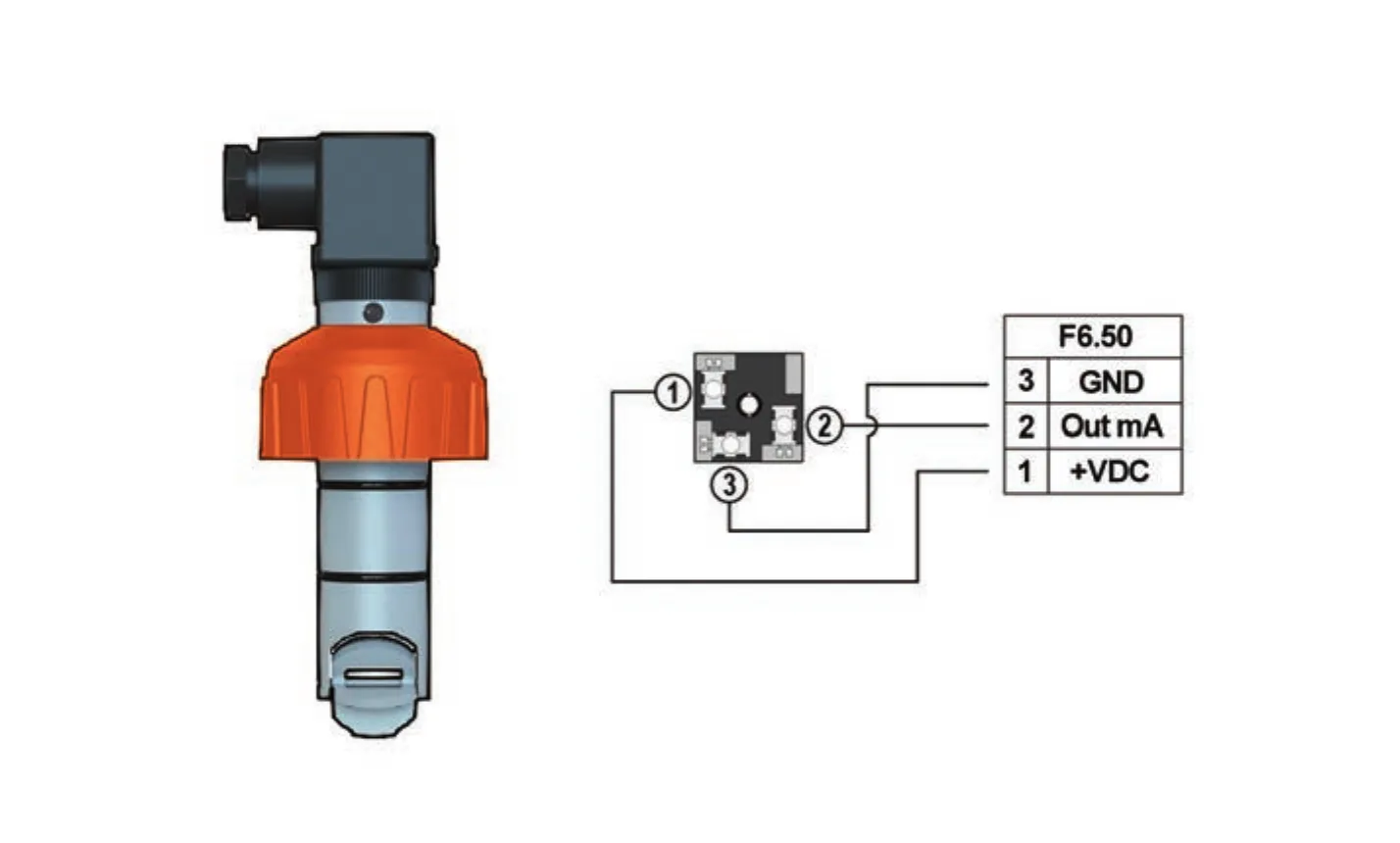

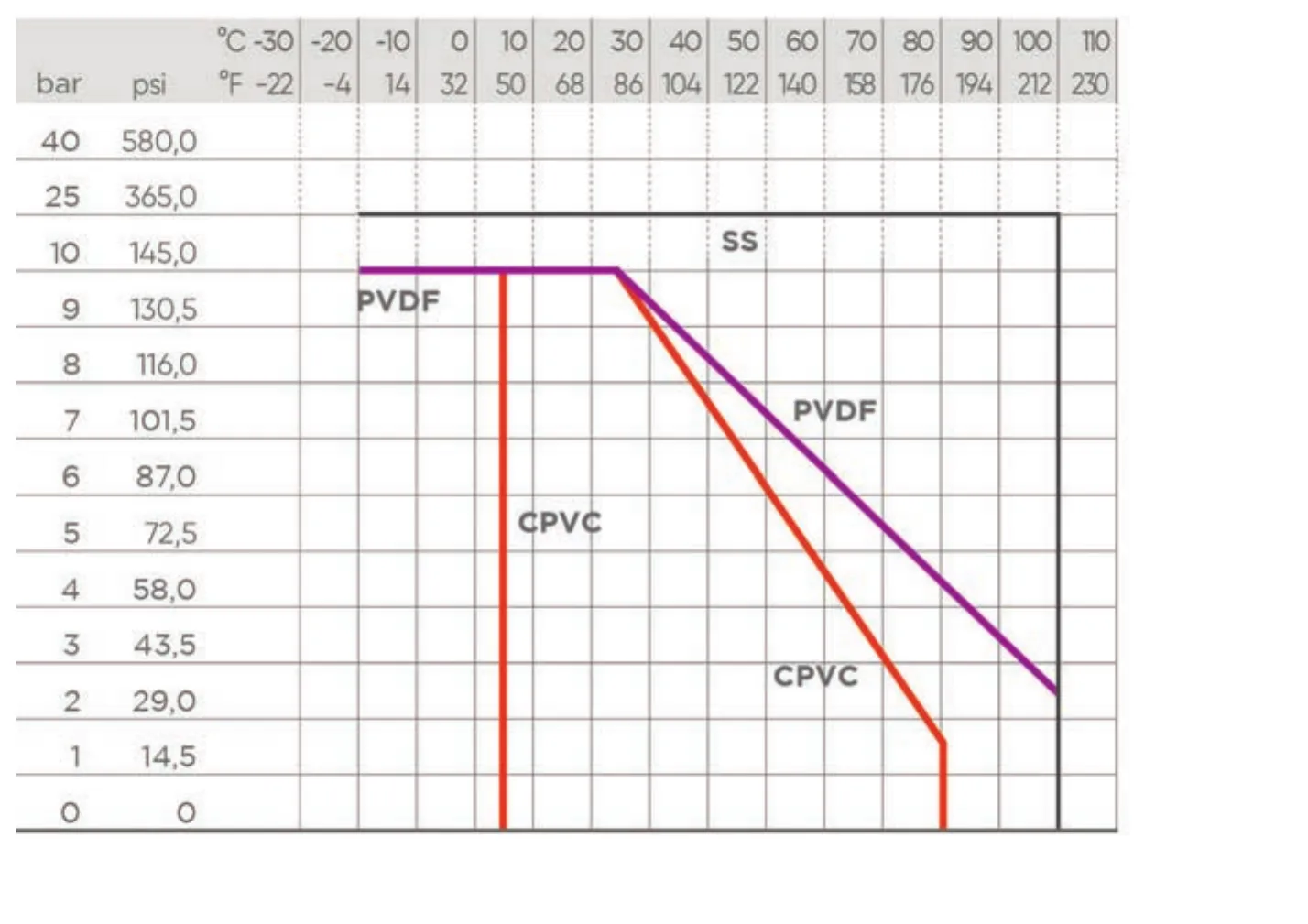

General information — Pipe size range:from DN15 to DN600 (0.5-24"). For more details, refer to the "Installation Adapters section"; Wireless connection standards: Bluetooth 5.0 compatible with iOS and Android; Flow range: from 0.15 to 8 m/s (0.5-25 ft/s); Linearity: ±0.75% of full scale; Repeatability: ±0.5% of full scale; Minimum Reynolds number required: 4500; Protection class: IP65. Materials in contact with liquids: Sensor body C-PVC, PVDF or AISI 316L stainless steel; O-ring EPDM or FKM; Rotor ECTFE (Halar); Shaft Ceramic (Al2O3) / AISI 316 Stainless Steel (for metal sensors); Bearings Ceramic (Al2O3) absent for metal sensors. Electrical data — Power supply: 12 to 24 VDC ±10% regulated (reverse polarity and short circuit protection); Ground connection: < 10 Ohm; Current output: 4-20 mA, isolated; Max loop impedance: 800 Ohm @ 24 VDC - 250 Ohm @ 12 VDC. Environmental data — Storage temperature: -30 to +80°C (from -22 to 176°F); Ambient temperature: -20 to +70°C (from -4 to 158°F); Relative humidity: from 0 to 95% not condensing.
