GY1 - 45° elbow - FIP PVC-U Pressure FittingsFIP
Pressure Fittings
Material corp
PVC-U
Material etanșare
Gaskets

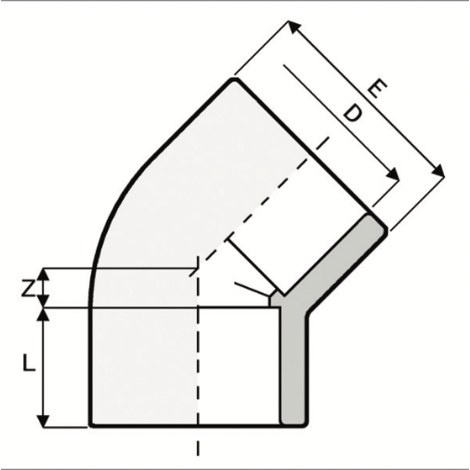

GY1 - 45° elbow

Caracteristici Tehnice

Size range:
d 12 ÷ d 315 mm
Nominal pressure:PN 16 with water at 20 °C up to d 160 mm, PN 10 from d 180 to d 315
Temperature range:0 °C ÷ 60 °C
Reference standards:ISO 727, EN ISO 1452-3, EN ISO 15493, BS 4346-1, UNI EN 10226-1
Fitting material:PVC-U
Seal material:Gaskets in EPDM, on request FKM
Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430

Documentație

VALVES_ASTORE.pdfVALVOLE_ASTORE.pdf
Solicită OfertăSună Acum

Informații Suplimentare

  • Disponibil pe stoc sau la comandă
  • Suport tehnic complet pentru instalare
  • Certificat de conformitate inclus
  • Livrare în toată România

Specificații (17 variante)

ReferințăDNdPNLGreutateMaterial
1RTI111000-1101661-PVC-U
1RGY113000-1251669-PVC-U
1RGY115000-1401676-PVC-U
1RGY117000-1601686-PVC-U
1RGY120000-201616-PVC-U
1RGY121000-20010108-PVC-U
1RGY123000NL-22510121-PVC-U
1RGY125000-251619-PVC-U
1RGY126000-25010131-PVC-U
1RGY128000-28010146-PVC-U
