Accessory
Material corp
PVC-U
Material etanșare
90° code / 180° code
Variante disponibile
4 dimensiuni DN
LTKD — Stroke limiter (90° / 180°)

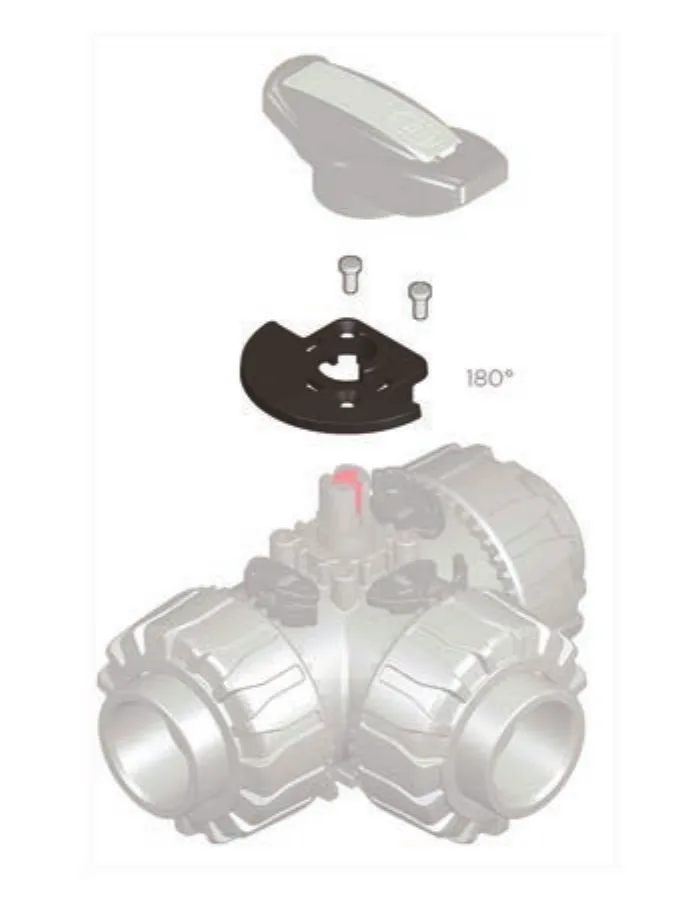

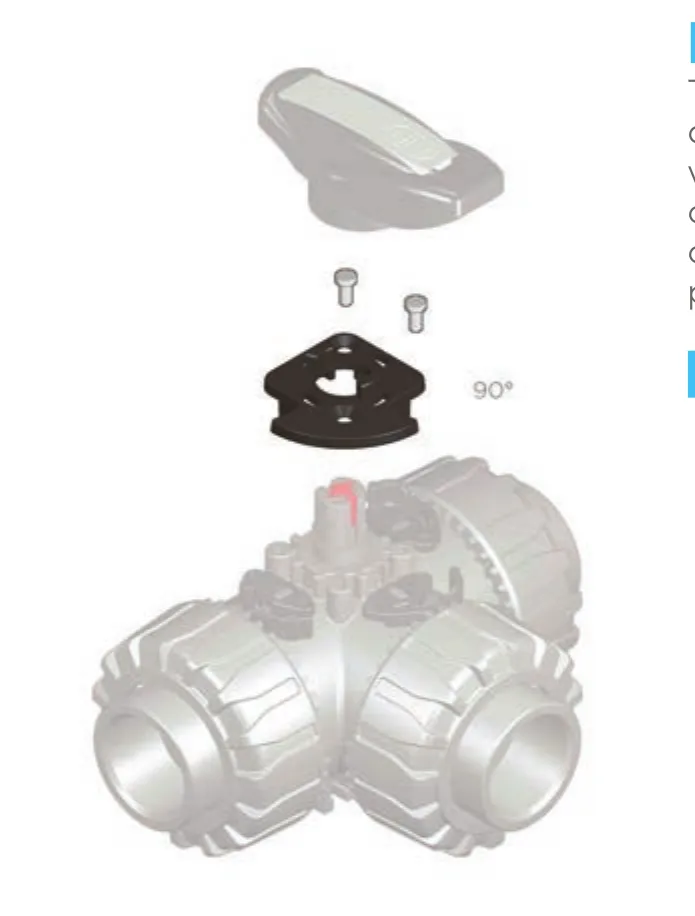

The LTKD stroke limiter specifically permits handle and ball rotation only at set opening and closing angles. The LTKD090 version permits operations for 90° angles while the LTKD180 version for 180° angles. The LTKD stroke limiter is made up of a single removable plate made of technopolymer. Designed for ISO 5211 bore and specifically designed to be directly housed on the valve body mounting flange. It is secured to the valve body by self-tapping screws or plastic rivets.
Caracteristici Tehnice
The LTKD stroke limiter specifically permits handle and ball rotation only at set opening and closing angles. The LTKD090 version permits operations for 90° angles while the LTKD180 version for 180° angles. The LTKD stroke limiter is made up of a single removable plate made of technopolymer. Designed for ISO 5211 bore and specifically designed to be directly housed on the valve body mounting flange. It is secured to the valve body by self-tapping screws or plastic rivets.
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (4 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| LTKD090020 / LTKD180020 | 10 - 15 | 16 - 20 | - | - | - | PVC-U |
| LTKD090032 / LTKD180032 | 20 - 25 | 25 - 32 | - | - | - | PVC-U |
| LTKD090050 / LTKD180050 | 32 - 40 | 40 - 50 | - | - | - | PVC-U |
| LTKD090063 / LTKD180063 | 50 | 63 | - | - | - | PVC-U |
