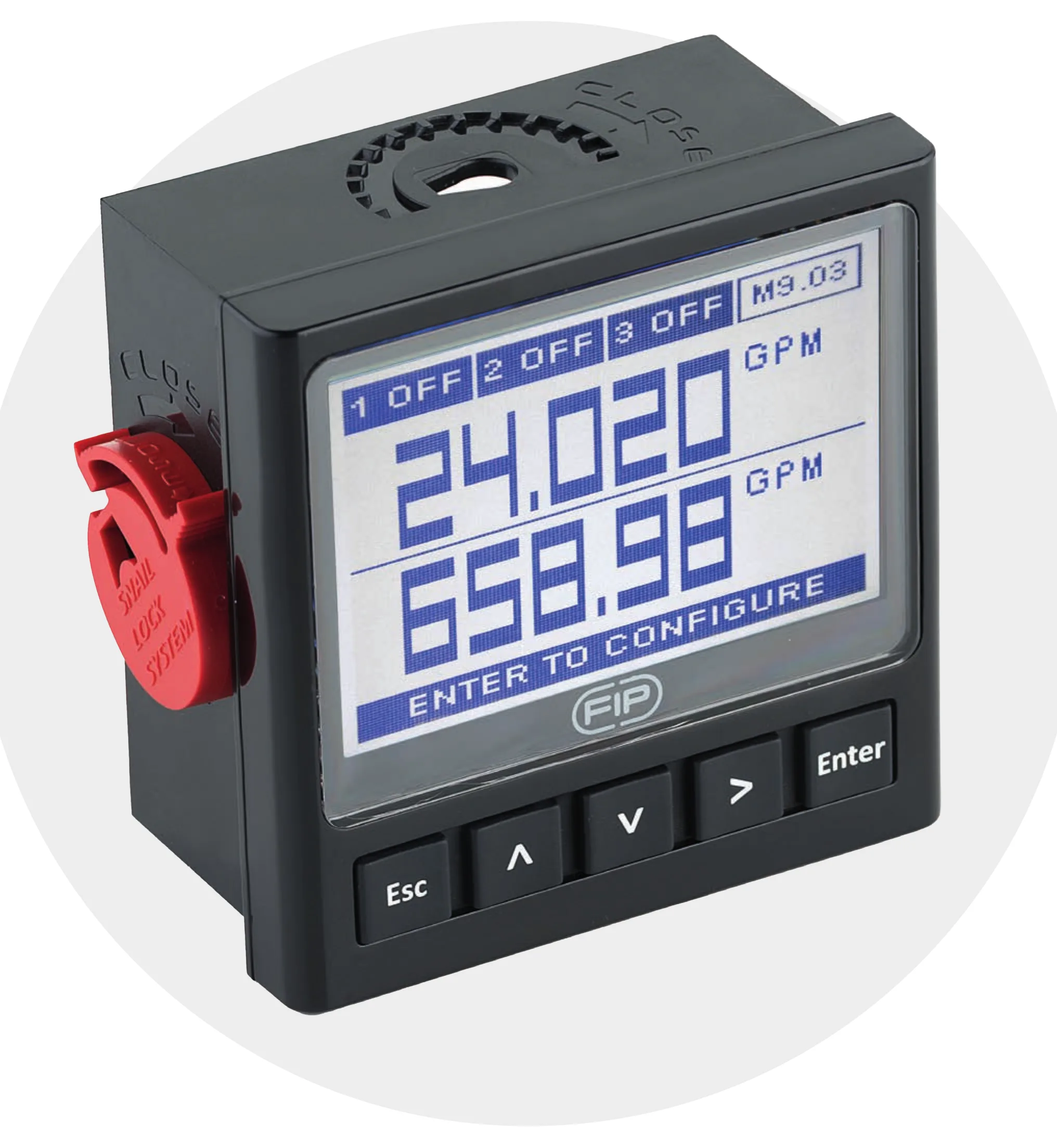

M9.03 — FLS Dual Parameter Flow Monitor and Transmitter

Dual Flow Monitor and Transmitter

Caracteristici Tehnice

Compatible sensors:2 FLS Hall effect flow sensors with frequency output or FLS F6.60 electromagnetic flow meters Materials: − Case: ABS − Display: PC − Panel and wall gasket: silicone rubber − 5-button keyboard: silicone rubber Display: − LCD full graphic − Backlight version: 3 - colours − Backlighting activation: user adjustable with 5 levels of timing − Update rate: 1 second − Protection class: IP65 front Flow input range (frequency): 0÷1500Hz Flow input accuracy (frequency): 0.5% Electrical data: Supply voltage: from 12 to 24 VDC ±10% regulated; Max electrical consumption: < 300 mA; 2 current outputs: 4-20 mA, isolated, fully adjustable and reversible; 2 solid state relay outputs; 2 relay outputs (Mechanical SPDT contact) Environmental data: Operating temperature: from –10 °C to 70 °C (from 14°F to 158 °F); Storage temperature: from ‑30°C to +80°C; Relative humidity: from 0 to 95% not condensing Standards & Approvals: Manufactured under ISO 9001, ISO 14001; CE; RoHS Compliance; EAC
