Batch controller
Variante disponibile
3 dimensiuni DN

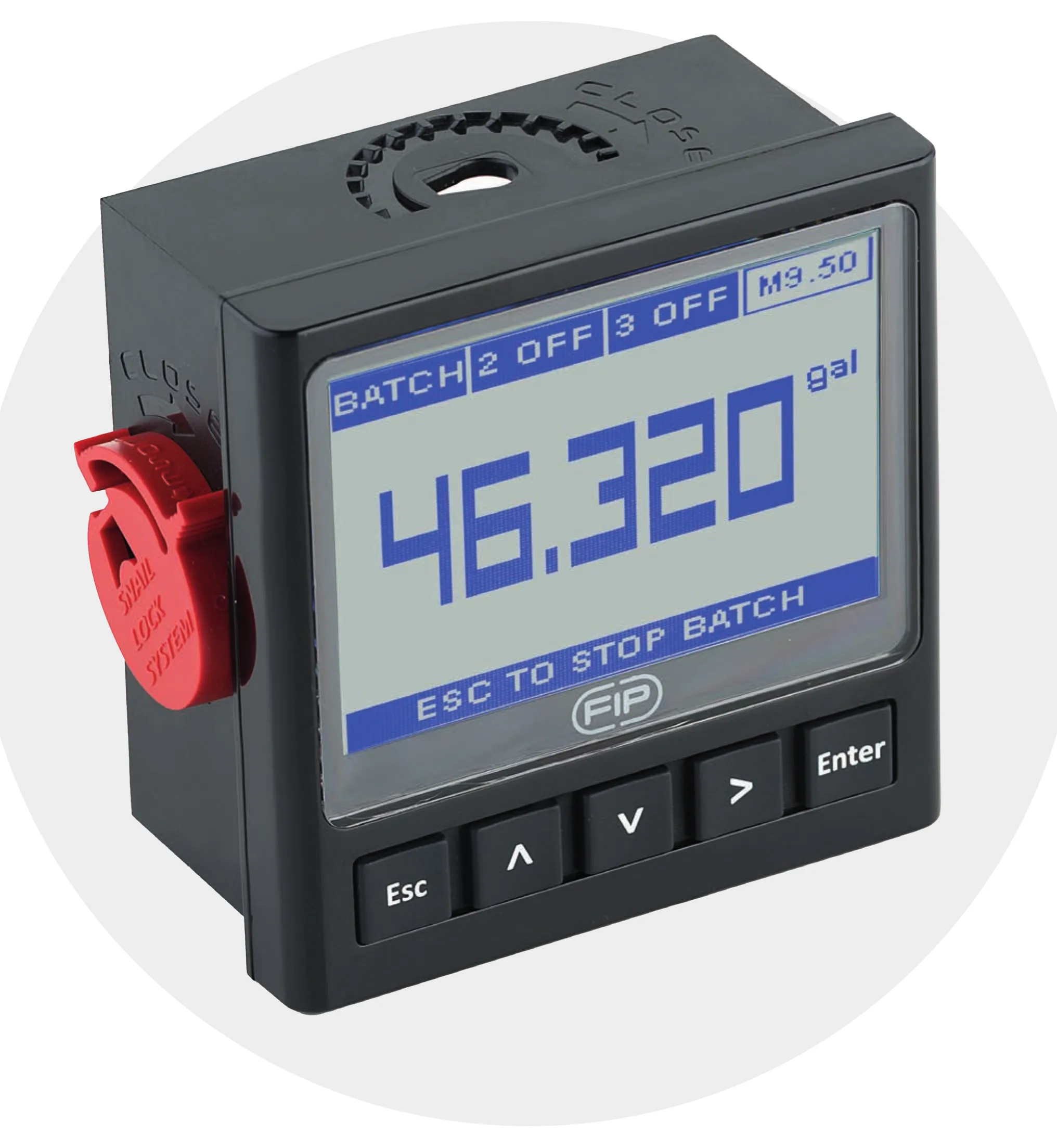

M9.50 — FLS M9.50 Batch Controller
M9.50.PX - M9.50.WX Batch Controller
Caracteristici Tehnice
Compatible sensors:FLS Hall effect flow sensors with frequency output or FLS F6.60 electromagnetic flow sensors
Materials: Case ABS; Display PC; Panel and wall gasket silicone rubber; 5-button keyboard silicone rubber
Display: LCD full graphic; Backlight version 3-colours; Backlighting activation user adjustable with 5 levels of timing; Update rate 1 second; Protection class IP65 front
Flow input range (frequency): 0÷1500Hz
Flow input accuracy: 0.5%

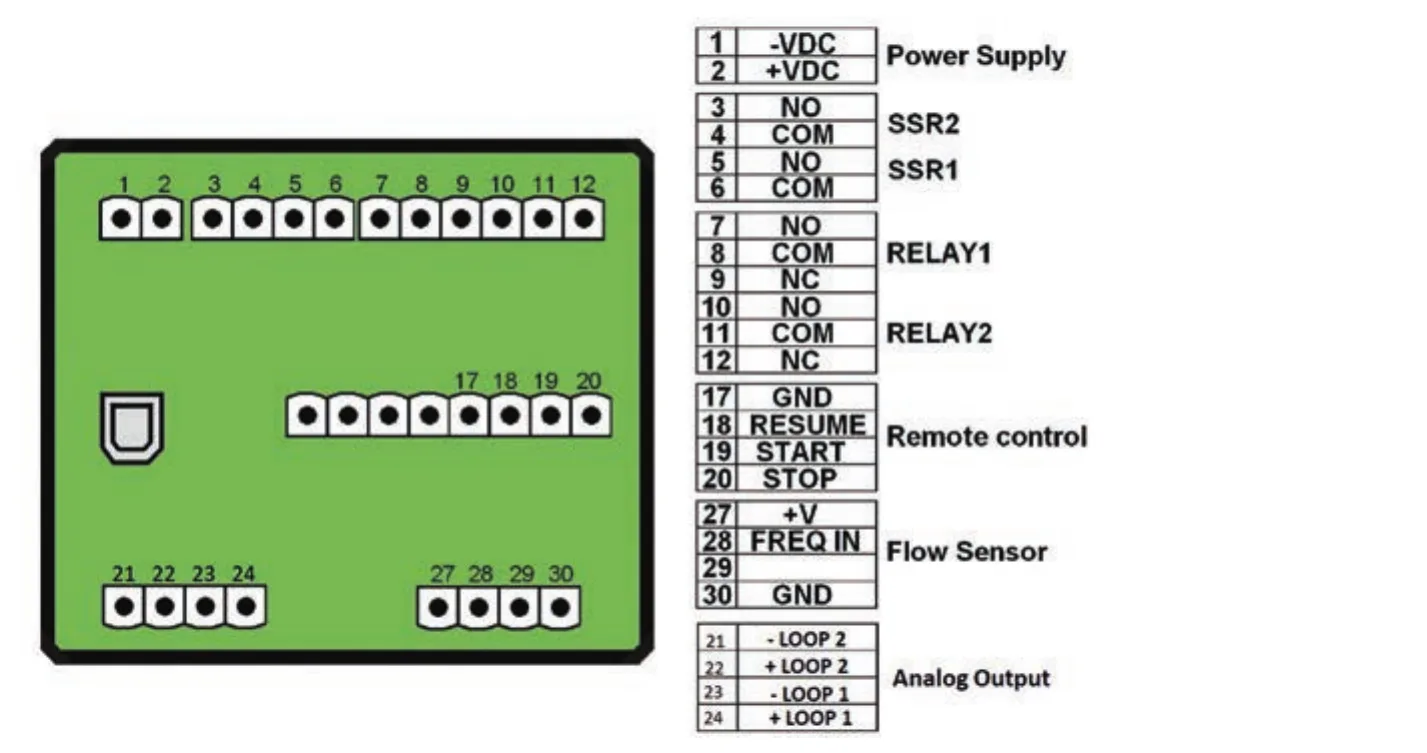

Electrical data: Supply voltage from 12 to 24 VDC ±10% regulated; Max electrical consumption < 300 mA; FLS Hall effect flow sensor power supply 5 VDC at < 20 mA, optically isolated from current loop, short circuit protected; 2 solid state relay outputs (optically isolated, 50 mA max sink, 24 VDC max pull-up voltage, max pulse/min 300); 2 relay outputs (mechanical SPDT contact, N.A./N.C. capacity 5 A/240 VAC, max pulse/min 60)
Environmental data: Operating temperature from -10°C to 70°C; Storage temperature from -30°C to +80°C; Relative humidity from 0 to 95% not condensing
Standards & Approvals: Manufactured under ISO 9001; Manufactured under ISO 14001; CE; RoHS Compliance; EAC
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (3 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| M9.50.P1 | - | - | - | - | - | - |
| M9.50.W1 | - | - | - | - | - | - |
| M9.50.W2 | - | - | - | - | - | - |
