ORP electrode
Material etanșare
Installation
Variante disponibile
3 dimensiuni DN

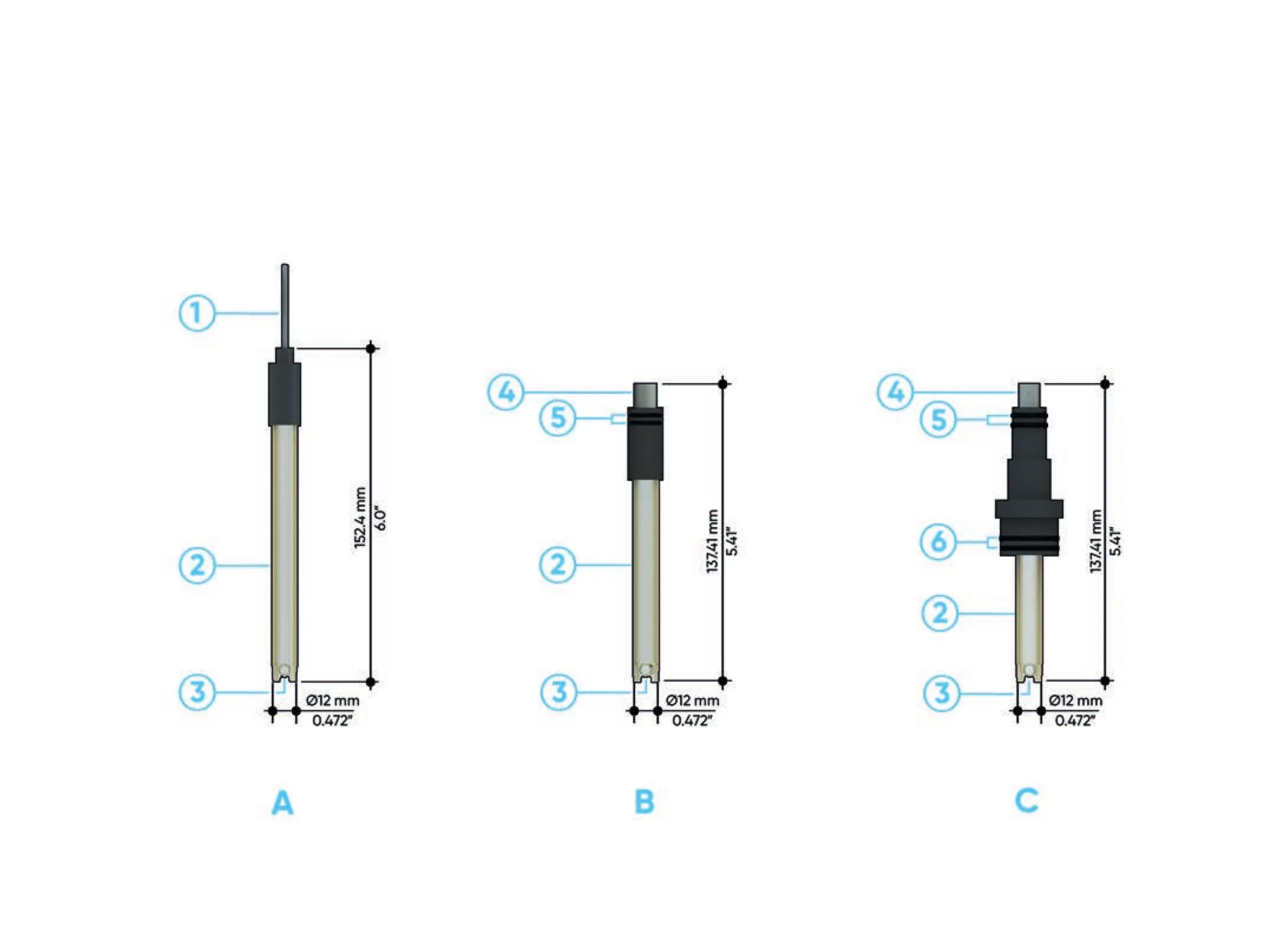

ORP2XX — Bulb ORP Electrodes with epoxy body
Bulb ORP Electrodes with epoxy body
Caracteristici Tehnice
Epoxy resin body; Single or double coupling technology; High reference gel volume; Quick and easy installation system; BNC or cable connection; Special models on request; Cost-effective adapters. Operating range ORP:±2000 mV. Reference solution: 3.5 M KCl solidified gel for single junction versions; KCl-KNO3 for double junction versions. Max operating pressure/temperature: 7 bar (100 psi) at 25°C (77°F); 1 bar (14,5 psi) at 65°C (149°F). Materials in contact with liquids: Body epoxy resin; O-ring joint silicone; Junction Pellon®; Detection surface platinum (ORP).
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (3 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| ORP200C / MK150200 / MIFV20X05 / MIMC20X05 | - | - | - | - | - | - |
| ORP222CD / MIFV20X05 / MIMC20X05 | - | - | - | - | - | - |
| ORP223CD / F3SP24 | - | - | - | - | - | - |
