FIPPressure Fittings
Material corp
PVC-U
Material etanșare
Gaskets

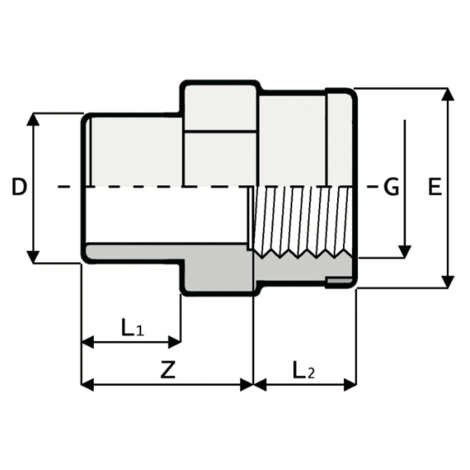

RM3 - Double adaptor
Caracteristici Tehnice
Size range:
d 16 x 3/8" ÷ d 110 x 4"
Nominal pressure:Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6"
BS/BSP transition fittings:Class E up to 2", Class D from 2"1/2 to 4"
Temperature range:0 °C ÷ 60 °C
Reference standards:ISO 7-1, ISO 228-1
Fitting material:PVC-U
Seal material:Gaskets in EPDM, on request FKM
Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430
Documentație
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (11 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| 1RMM363G00 | - | - | 16 | - | - | PVC-U |
| 1RRM320B00 | - | - | 16 | - | - | PVC-U |
| 1RRM325B00 | - | - | 16 | - | - | PVC-U |
| 1RRM325C00 | - | - | 16 | - | - | PVC-U |
| 1RRM332C00 | - | - | 16 | - | - | PVC-U |
| 1RRM332D00 | - | - | 16 | - | - | PVC-U |
| 1RRM340D00 | - | - | 16 | - | - | PVC-U |
| 1RRM340E00 | - | - | 16 | - | - | PVC-U |
| 1RRM350F00 | - | - | 16 | - | - | PVC-U |
| 1RRM350G00 | - | - | 16 | - | - | PVC-U |
