Diaphragm valve
Material corp
PVDF
Material etanșare
EPDM / FKM / PTFE
Variante disponibile
2 dimensiuni DN

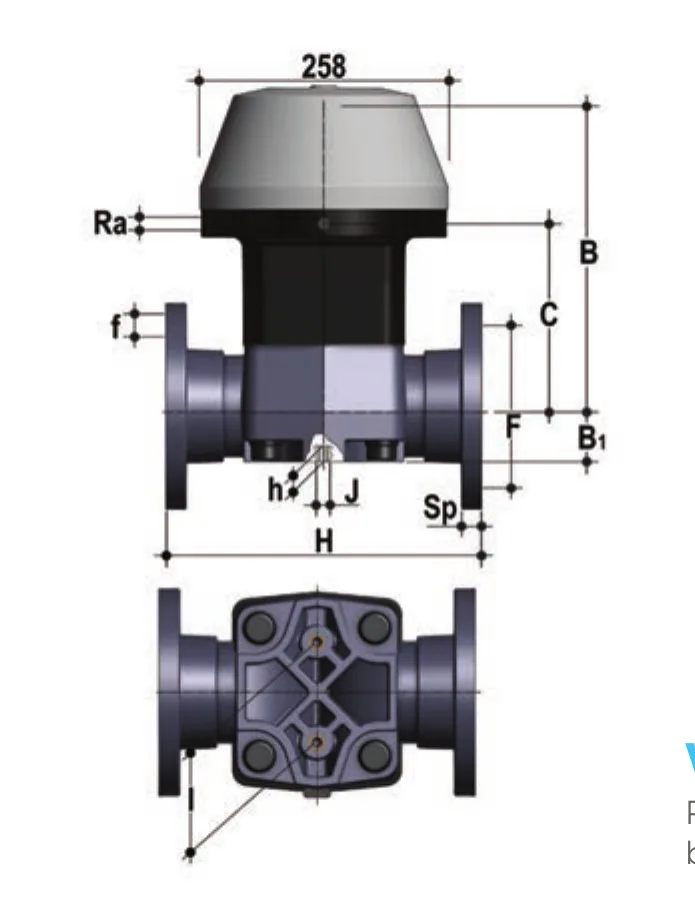

VMOAF/CP NC — Pneumatically actuated diaphragm valve, Normally Closed, monolithic flanged body ANSI B16.5 cl.150 #FF
Pneumatically actuated diaphragm valve. Normally Closed function with monolithic flanged body ANSI B16.5 cl.150 #FF*
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (2 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VMOAFNC300E / VMOAFNC300F / VMOAFNC300P | 80 | 3" | 6 | - | 18520 g | PVDF |
| VMOAFNC400E / VMOAFNC400F / VMOAFNC400P | 100 | 4" | 6 | - | 29790 g | PVDF |
