Diaphragm valve
Material corp
PVC-U
Material etanșare
EPDM / FKM / PTFE
Variante disponibile
2 dimensiuni DN

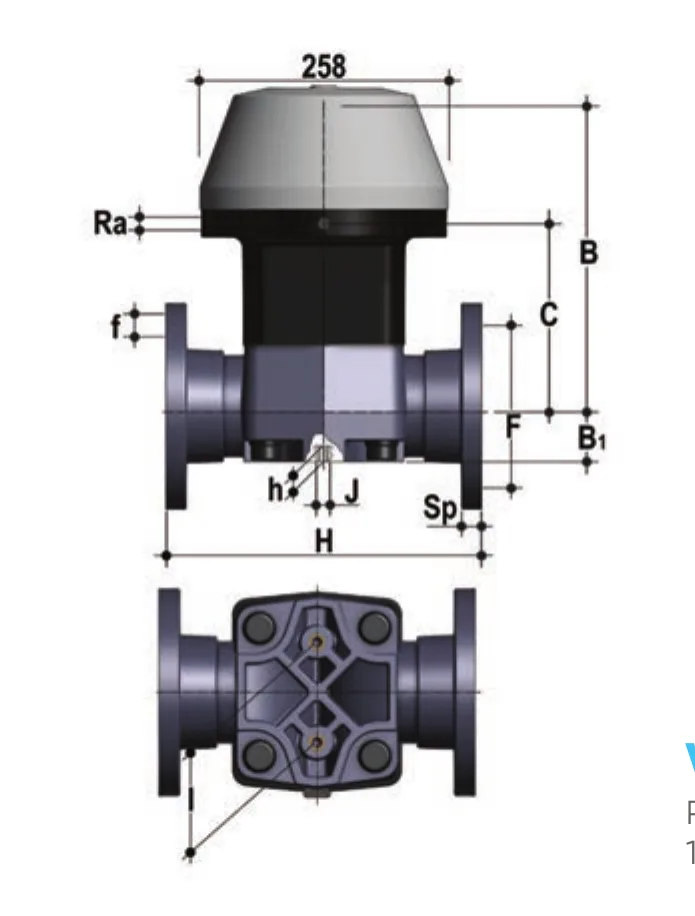

VMOAV/CP NC — Diaphragm valve, monolithic flanged body ANSI B16.5 cl.150 #FF, Normally Closed
Pneumatically actuated diaphragm valve with monolithic flanged body, drilled ANSI B16.5 cl. 150 #FF, Normally Closed function
Caracteristici Tehnice
For installations prior to October 2017, contact FIP technical support
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (2 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VMOAVNC300E / VMOAVNC300F / VMOAVNC300P | 80 | 3" | 6 | - | 17000 g | PVC-U |
| VMOAVNC400E / VMOAVNC400F / VMOAVNC400P | 100 | 4" | 6 | - | 27900 g | PVC-U |
