Check valve
Material corp
PVC-U
Variante disponibile
10 dimensiuni DN

1V230 — True union spring check valve, ISO metric plain solvent weld socket

True union grey PVC spring check valve, ISO metric plain solvent weld socket. Stainless Steel AISI 316 spring. EPDM seals.

Caracteristici Tehnice

Construction:True union grey PVC spring check valve, radially disassemblable. Size range: DN 10 ÷ 100. Nominal pressure: DN 10÷50: PN16 with water at 20°C; DN 65÷100: PN10 with water at 20°C. Temperature range: 0 °C ÷ 60 °C. Minimum sealing pressure: 0,08 bar. Coupling standards: Solvent welding: ISO metric (model 1V230); Thread: Standard BSP (Model 1V231). Valve material: PVC-U. Seal material: EPDM (O-ring). Control options: Manual control.
Solicită OfertăSună Acum

Informații Suplimentare

  • Disponibil pe stoc sau la comandă
  • Suport tehnic complet pentru instalare
  • Certificat de conformitate inclus
  • Livrare în toată România

Specificații (10 variante)

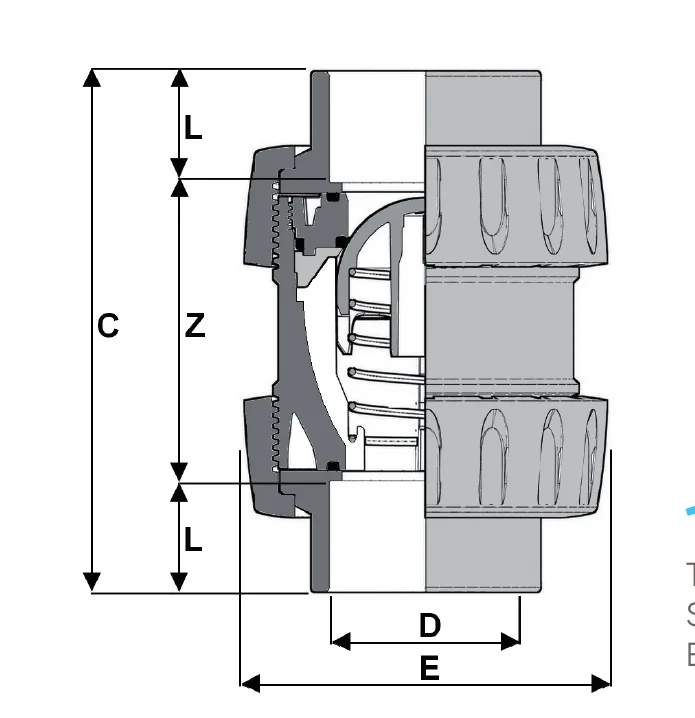

ReferințăDNdPNLGreutateMaterial
1V2300160010-1614100 gPVC-U
1V2300200015-1616105 gPVC-U
1V2300250020-1619150 gPVC-U
1V2300320025-1622250 gPVC-U
1V2300400032-1626370 gPVC-U
1V2300500040-1631590 gPVC-U
1V2300630050-1638990 gPVC-U
SSEIV075E65-10442480 gPVC-U
SSEIV090E80-10513090 gPVC-U
SSEIV110E100-10615370 gPVC-U
