Check valve
Material corp
PVC-U
Variante disponibile
10 dimensiuni DN

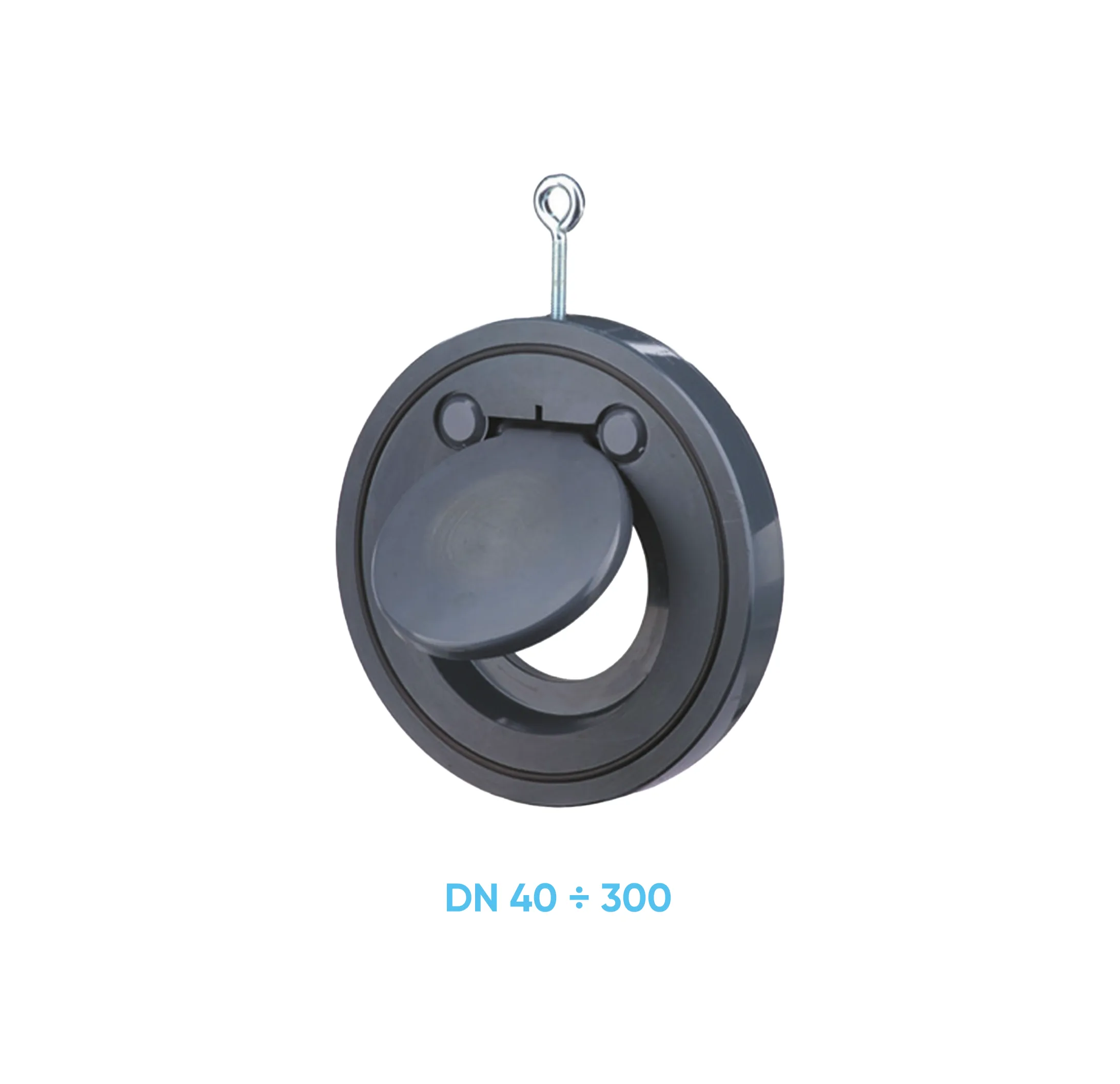

CROV — PVC-U/EPDM clapet check valve
PVC-U/EPDM clapet check valve
Caracteristici Tehnice
Construction:Grey PVC clapet check valve. Size range: DN 40 ÷ 300. Nominal pressure: PN5 bar with water at 20 °C. Temperature range: 0 °C ÷ 60 °C. Coupling standards: Flanging system: EN 1092-1 PN 10, EN ISO 1452, EN ISO 15493. Reference standards: Construction criteria: EN ISO 16137 EN ISO 1452, EN ISO 15493; Test methods and requirements: ISO 9393; Installation criteria: DVS 2204, DVS 2221, UNI 11242. Body and disc material: PVC-U. Seal material: EPDM. Connection with pipes with maximum pressure rating PN 10. A - Minimum pressure for valve opening. B - Minimum pressure for valve sealing.
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (10 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| CROV050E | 40 | - | 5 | - | 160 g | PVC-U |
| CROV063E | 50 | - | 5 | - | 260 g | PVC-U |
| CROV075E | 65 | - | 5 | - | 330 g | PVC-U |
| CROV090E | 80 | - | 5 | - | 400 g | PVC-U |
| CROV110E | 100 | - | 5 | - | 560 g | PVC-U |
| CROV140E | 125 | - | 5 | - | 760 g | PVC-U |
| CROV160E | 150 | - | 5 | - | 1120 g | PVC-U |
| CROV225E | 200 | - | 5 | - | 2130 g | PVC-U |
| CROV280E | 250 | - | 5 | - | 3540 g | PVC-U |
| CROV315E | 300 | - | 5 | - | 5350 g | PVC-U |
