Ball valve
Material corp
PVC-U
Variante disponibile
10 dimensiuni DN

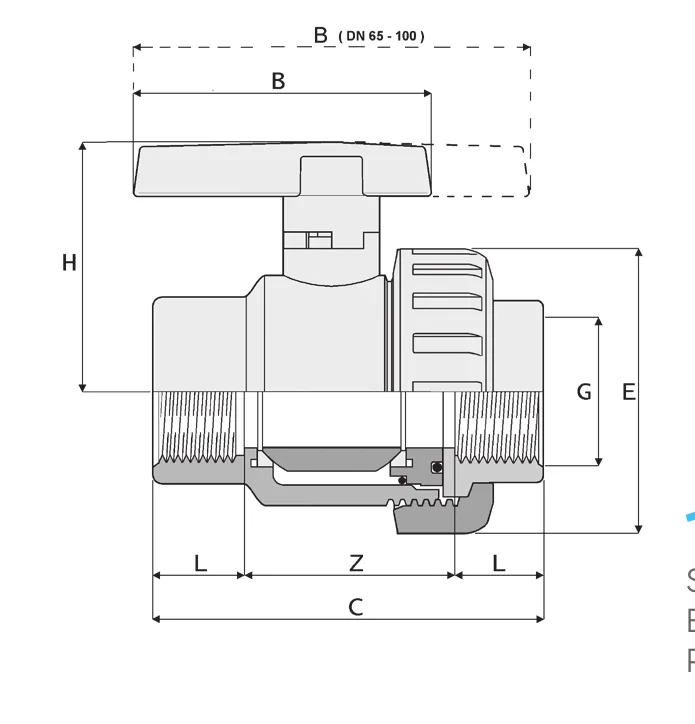

1V301 — Single union grey PVC ball valve, BSP female threaded socket
Single union grey PVC ball valve, BSP female threaded socket, with free ball support. EPDM seals. PE ball seats.
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (10 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| 1V30116000H | 10 | - | 16 | 13 | 96 g | PVC-U |
| 1V30120000H | 15 | - | 16 | 17 | 105 g | PVC-U |
| 1V30125000H | 20 | - | 16 | 19 | 160 g | PVC-U |
| 1V30132000H | 25 | - | 16 | 22 | 240 g | PVC-U |
| 1V30140000H | 32 | - | 16 | 24 | 355 g | PVC-U |
| 1V30150000H | 40 | - | 16 | 24 | 575 g | PVC-U |
| 1V30163000H | 50 | - | 16 | 29 | 960 g | PVC-U |
| 1V30175000LW | 65 | - | 10 | 33 | 2700 g | PVC-U |
| 1V30190000LW | 80 | - | 10 | 36 | 2800 g | PVC-U |
| 1V30111000LW | 100 | - | 6 | 42 | 4700 g | PVC-U |
