Ball valve
Material corp
PVC-U
Variante disponibile
7 dimensiuni DN

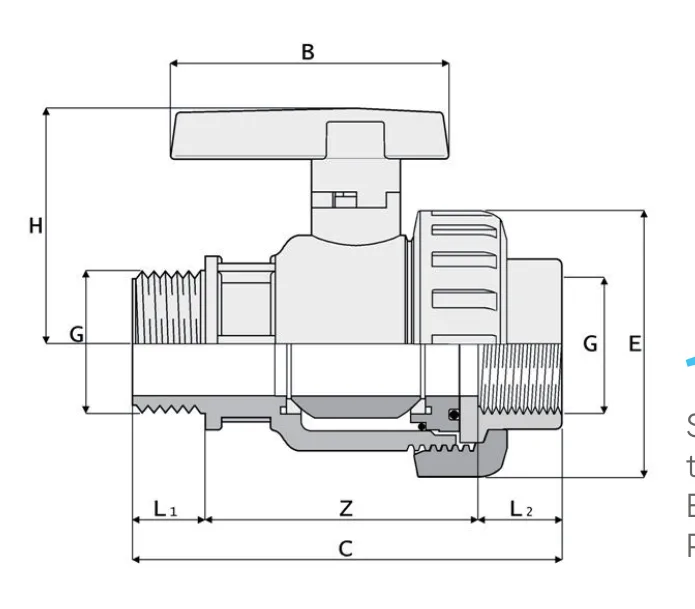

1V303 — Single union grey PVC ball valve, BSP female/male threaded, free ball support
Single union grey PVC ball valve, BSP female threaded socket on nut side and BSP male threaded socket on valve body side, with free ball support. EPDM seals. PE ball seats.
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (7 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| 1V30316000H | 10 | - | 16 | - | 100 g | PVC-U |
| 1V30320000H | 15 | - | 16 | - | 105 g | PVC-U |
| 1V30325000H | 20 | - | 16 | - | 160 g | PVC-U |
| 1V30332000H | 25 | - | 16 | - | 245 g | PVC-U |
| 1V30340000H | 32 | - | 16 | - | 360 g | PVC-U |
| 1V30350000H | 40 | - | 16 | - | 590 g | PVC-U |
| 1V30363000H | 50 | - | 16 | - | 980 g | PVC-U |
