Ball valve
Material corp
PVC-U
Material etanșare
EPDM code / FKM code
Variante disponibile
10 dimensiuni DN

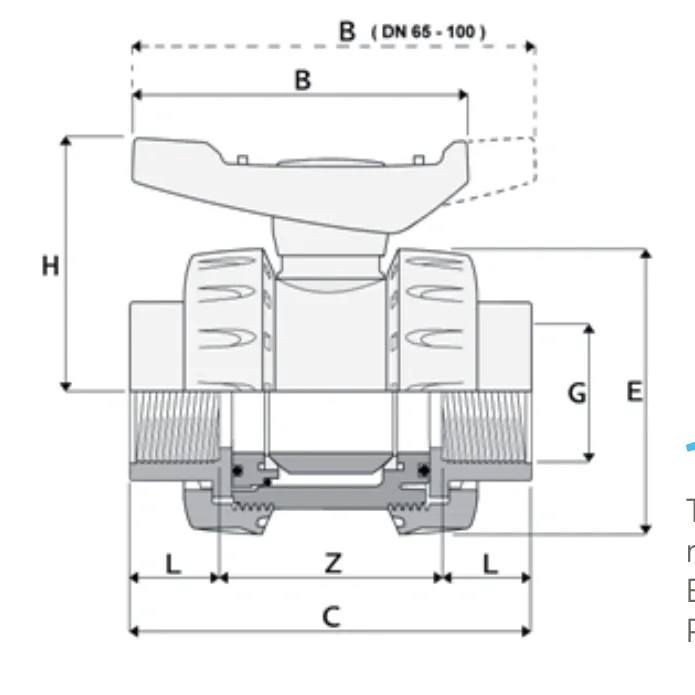

1V725 — True union ball valve (724), BSP female threaded socket
True union grey PVC spheric ball valve, BSP female threaded socket, with fixed ball support and radial disassembly. EPDM or FKM seals. PTFE ball seats.
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (10 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| 1V72501600 / 1V72501610 | 10 | - | 16 | 13 | 150 g | PVC-U |
| 1V72502000 / 1V72502010 | 15 | - | 16 | 17 | 145 g | PVC-U |
| 1V72502500 / 1V72502510 | 20 | - | 16 | 19 | 225 g | PVC-U |
| 1V72503200 / 1V72503210 | 25 | - | 16 | 22 | 320 g | PVC-U |
| 1V72504000 / 1V72504010 | 32 | - | 16 | 24 | 515 g | PVC-U |
| 1V72505000 / 1V72505010 | 40 | - | 16 | 24 | 735 g | PVC-U |
| 1V72506300 / 1V72506310 | 50 | - | 16 | 29 | 1260 g | PVC-U |
| 1V72507500 / 1V72507510 | 65 | - | 10 | 33 | 3400 g | PVC-U |
| 1V72509000 / 1V72509010 | 80 | - | 10 | 36 | 3500 g | PVC-U |
| 1V72511000 / 1V72511010 | 100 | - | 10 | 42 | 5900 g | PVC-U |
