Ball valve
Material corp
PVC-C
Material etanșare
EPDM code / FKM code
Variante disponibile
6 dimensiuni DN

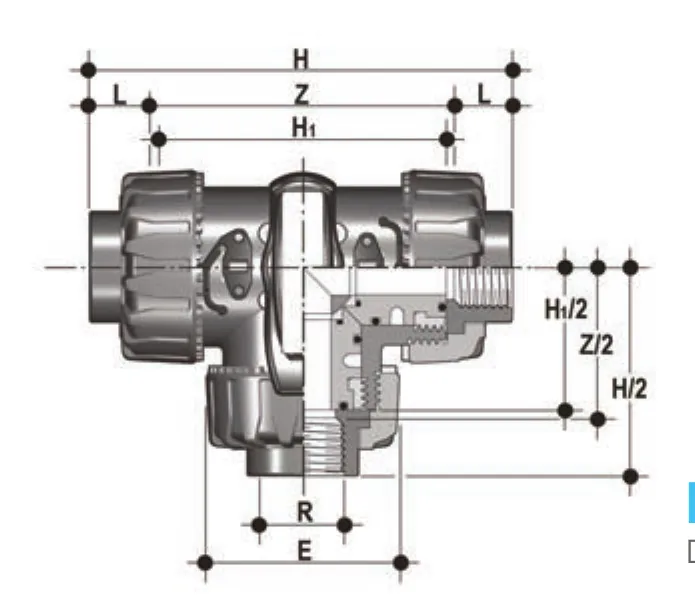

LKDFC — DUAL BLOCK 3-way ball valve, BSP threaded female ends, L-port ball
Dual Block® 3-way ball valve with BSP threaded female ends, L-port ball.
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| LKDFC012E / LKDFC012F | 15 | - | 16 | 18 | 310 g | PVC-C |
| LKDFC034E / LKDFC034F | 20 | - | 16 | 18 | 550 g | PVC-C |
| LKDFC100E / LKDFC100F | 25 | - | 16 | 22,6 | 790 g | PVC-C |
| LKDFC114E / LKDFC114F | 32 | - | 16 | 25,1 | 1275 g | PVC-C |
| LKDFC112E / LKDFC112F | 40 | - | 16 | 24,7 | 1660 g | PVC-C |
| LKDFC200E / LKDFC200F | 50 | - | 16 | 29,6 | 2800 g | PVC-C |
