Ball valve
Material corp
PVC-C
Material etanșare
EPDM code / FKM code
Variante disponibile
6 dimensiuni DN
LKDNC — DUAL BLOCK 3-way ball valve, NPT threaded female ends, L-port ball
DUAL BLOCK® 3-way ball valve with female ends, NPT thread, L-port ball.
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)

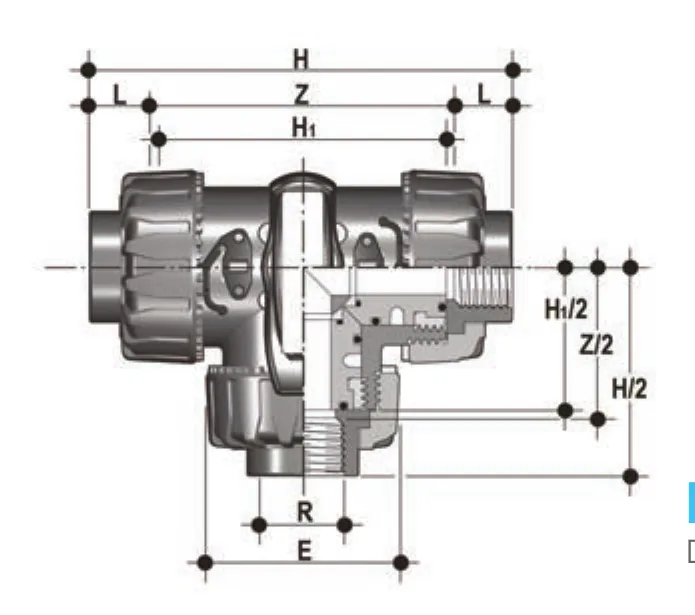

| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| LKDNC012E / LKDNC012F | 15 | - | 16 | 18 | 310 g | PVC-C |
| LKDNC034E / LKDNC034F | 20 | - | 16 | 18 | 550 g | PVC-C |
| LKDNC100E / LKDNC100F | 25 | - | 16 | 22.6 | 790 g | PVC-C |
| LKDNC114E / LKDNC114F | 32 | - | 16 | 25.1 | 1275 g | PVC-C |
| LKDNC112E / LKDNC112F | 40 | - | 16 | 24.7 | 1660 g | PVC-C |
| LKDNC200E / LKDNC200F | 50 | - | 16 | 29.6 | 2800 g | PVC-C |
