Ball valve
Material corp
PVC-U
Material etanșare
EPDM / FKM
Variante disponibile
7 dimensiuni DN

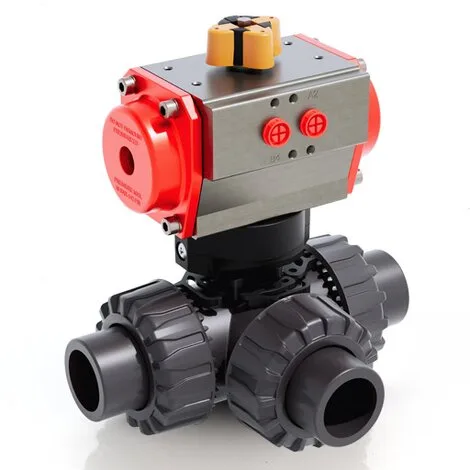

TKDAV/CP DA — 3-way DUAL BLOCK ball valve, female ASTM-series ends, pneumatic Double-Acting actuator
3 way DUAL BLOCK® ball valve with female ends, ASTM series with pneumatic actuator, Double-Acting function. “T” ball, configuration 1
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (7 variante)

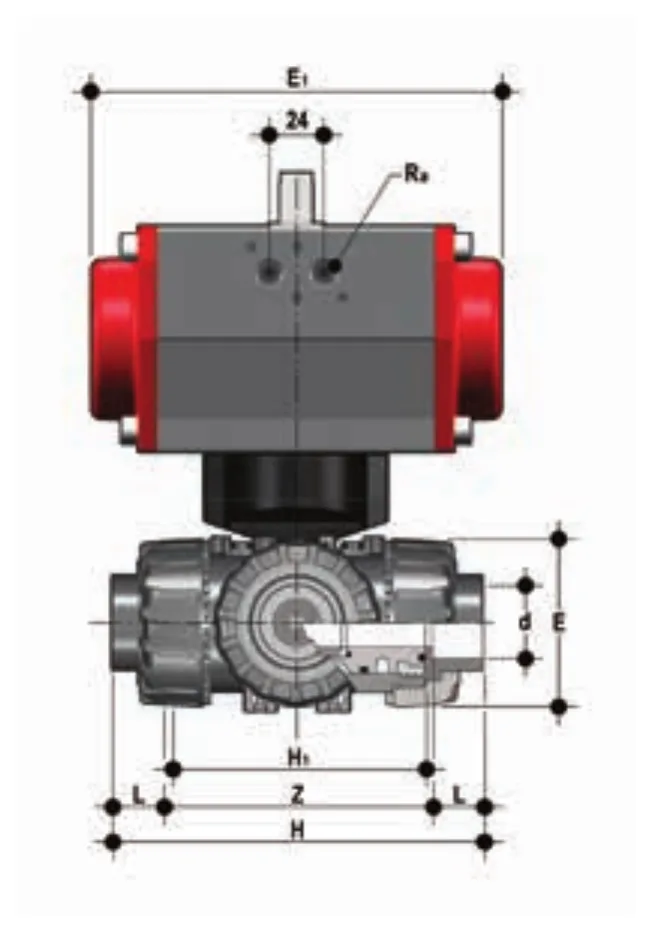

| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| TKDAVDA038E1 / TKDAVDA038F1 | 10 | 3/8” | 16 | 19.5 | 1413 g | PVC-U |
| TKDAVDA012E1 / TKDAVDA012F1 | 15 | 1/2” | 16 | 23 | 1943 g | PVC-U |
| TKDAVDA034E1 / TKDAVDA034F1 | 20 | 3/4” | 16 | 25.5 | 2186 g | PVC-U |
| TKDAVDA100E1 / TKDAVDA100F1 | 25 | 1” | 16 | 28.7 | 2409 g | PVC-U |
| TKDAVDA114E1 / TKDAVDA114F1 | 32 | 1” 1/4 | 16 | 32 | 2913 g | PVC-U |
| TKDAVDA112E1 / TKDAVDA112F1 | 40 | 1” 1/2 | 16 | 35 | 3260 g | PVC-U |
| TKDAVDA200E1 / TKDAVDA200F1 | 50 | 2” | 16 | 38.2 | 5684 g | PVC-U |
