Ball valve
Material corp
PVC-U
Material etanșare
EPDM / FKM
Variante disponibile
7 dimensiuni DN

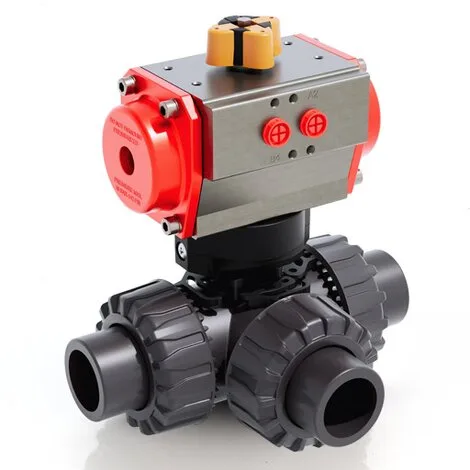

TKDAV/CP SA — 3-way DUAL BLOCK ball valve, female ASTM-series ends, pneumatic Single-acting actuator
3 way DUAL BLOCK® ball valve with female ends, ASTM series with pneumatic actuator, Single-acting function. “T” ball, configuration 1
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (7 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| TKDAVSA038E1 / TKDAVSA038F1 | 10 | 3/8” | 16 | 19.5 | 1543 g | PVC-U |
| TKDAVSA012E1 / TKDAVSA012F1 | 15 | 1/2” | 16 | 23 | 2143 g | PVC-U |
| TKDAVSA034E1 / TKDAVSA034F1 | 20 | 3/4” | 16 | 25.5 | 2386 g | PVC-U |
| TKDAVSA100E1 / TKDAVSA100F1 | 25 | 1” | 16 | 28.7 | 2659 g | PVC-U |
| TKDAVSA114E1 / TKDAVSA114F1 | 32 | 1” 1/4 | 16 | 32 | 3113 g | PVC-U |
| TKDAVSA112E1 / TKDAVSA112F1 | 40 | 1” 1/2 | 16 | 35 | 3460 g | PVC-U |
| TKDAVSA200E1 / TKDAVSA200F1 | 50 | 2” | 16 | 38.2 | 6154 g | PVC-U |
